Brain atlases and data structures :: Cheatsheet

Install, inspect and reshape ggsegverse atlases

ggseg_atlas objects, atlas verbs, palettes, meshes and the atlas packages.

Author

Athanasia Monika Mowinckel

Download PDF

Getting atlases

The ecosystem

Package	Holds
ggseg.formats	the atlas class, verbs and FreeSurfer I/O
ggseg	2D plotting (`geom_brain()`)
ggseg3d	3D plotting (htmlwidget)
ggseg.meshes	extra cortical and cerebellar surfaces
ggseg.extra	building new atlases, needs FreeSurfer
ggsegverse	installs and loads the lot

dk(), aseg(), suit() and tracula() ship inside ggseg and ggseg3d. Everything else lives in its own package on the r-universe.

Installing

options(repos = c(
  ggsegverse = "https://ggsegverse.r-universe.dev",
  CRAN = "https://cloud.r-project.org"
))

install.packages("ggsegverse")

library(ggsegverse)

ggseg_atlas_repos()          # everything available
ggseg_atlas_repos("schaefer") # matching a pattern
installed_ggseg_atlases()    # what you already have

install_ggseg_atlas("ggsegYeo2011")
install_ggseg_atlas_all()    # all of them, a large download

ggsegverse_packages()  # core packages
ggsegverse_deps()      # versions, and what is behind
ggsegverse_update()    # update the ones that are
ggsegverse_conflicts() # masked function names
ggsegverse_sitrep()    # one report covering all of it

Atlas packages follow the same shape: library(ggsegYeo2011) then yeo7(), and every atlas is a function.

The ggseg_atlas object

Anatomy

library(ggseg)
library(ggseg.formats)

names(dk())
#> atlas, type, palette, core, data
class(dk())
#> cortical_atlas, ggseg_atlas, list

Slot	Holds
`atlas`	the atlas name
`type`	`cortical`, `subcortical`, `cerebellar` or `tract`
`core`	one row per region: `hemi`, `region`, `label`
`data`	the geometry, keyed on `label`
`palette`	named vector of colours, one per label

core carries the metadata, data the drawing instructions, and the two are cross-checked on construction. Extra core columns (lobe, names) ride along and are available to aes().

What goes in `data`

Type	Constructor	Contains
cortical	`ggseg_data_cortical()`	polygons + vertex indices
subcortical	`ggseg_data_subcortical()`	polygons + one mesh per region
cerebellar	`ggseg_data_cortical()`	flatmap polygons + SUIT vertices
tract	`ggseg_data_tract()`	centrelines + tangents

Vertex indices are 0-based and point into the shared brain mesh.

Inspecting

atlas_regions(dk())
atlas_labels(dk())
atlas_views(dk())
atlas_type(dk())
atlas_geom(dk())
atlas_vertices(dk())
atlas_palette(dk())
atlas_geometry_type(dk())

is_ggseg_atlas(dk())
is_cortical_atlas(dk())
is_subcortical_atlas(aseg())
is_cerebellar_atlas(suit())
is_tract_atlas(tracula())

plot(dk()) and atlas_plot_palette(dk()) show the regions and the colours.

Reshaping atlases

Regions

Every verb takes an atlas and returns an atlas, so they pipe.

dk() |>
  atlas_region_keep("precentral") |>
  atlas_regions()

Verb	Does
`atlas_region_keep()`	keep matching regions
`atlas_region_remove()`	drop matching regions
`atlas_region_rename()`	rename, pattern to replacement
`atlas_region_contextual()`	mark as background context
`atlas_region_op()`	the general form behind these
`atlas_core_add()`	add columns to `core`

All take (atlas, pattern) and match on region; pass match_on = "label" to act per hemisphere.

Views

dk() |>
  atlas_view_keep(c("lateral", "medial")) |>
  atlas_views()

Verb	Does
`atlas_view_keep()`	keep these views
`atlas_view_remove()`	drop these views
`atlas_view_reorder()`	set the order
`atlas_view_select()`	keep one view per region
`atlas_view_gather()`	merge views into one
`atlas_view_remove_region()`	drop a region from one view
`atlas_view_remove_small()`	drop slivers below a threshold

atlas_structure_reorder() sets the order regions are drawn in.

Palettes

pal <- atlas_palette(dk())
head(pal, 3)

pal["lh_precentral"] <- "#5e3c58"
new_atlas <- set_atlas_palette(dk(), pal)

A palette must name every label in the atlas, so edit the existing vector rather than passing a short one. Set the type explicitly with set_atlas_type(atlas, "cortical") when an atlas you have built guesses wrong.

Data and meshes

Brain meshes

get_brain_mesh("lh", surface = "inflated")
get_cerebellar_mesh()

ggseg.meshes::get_cortical_mesh("lh", "pial")
ggseg.meshes::get_cerebellar_flatmap()

Each mesh is a list of vertices (x, y, z) and faces (i, j, k), at fsaverage5 resolution — 10,242 vertices per hemisphere. The inflated surface ships in ggseg.formats; the rest in ggseg.meshes.

Reading FreeSurfer output

read_freesurfer_stats("lh.aparc.stats")
read_freesurfer_table("aseg.stats")

read_atlas_files("path/to/atlas")
migrate_atlas_files("old/", "new/")

read_freesurfer_stats(path, rename = TRUE) tidies the column names into something that joins straight onto an atlas.

Converting and migrating

as_ggseg_atlas(x)      # anything -> ggseg_atlas
as_sf_atlas(dk())      # geometry as sf
as_polygon_atlas(x)    # geometry as polygons
convert_legacy_brain_atlas(old)

Renamed in 0.1–0.2. brain_regions(), brain_labels() and brain_views() became atlas_regions(), atlas_labels() and atlas_views(); brain_atlas() became ggseg_atlas(); is_brain_atlas() and as_brain_atlas() became is_ggseg_atlas() and as_ggseg_atlas(). The old names still work and warn.

Building a new atlas

ggseg.extra turns neuroimaging files into atlases. It needs FreeSurfer on the path.

library(ggseg.extra)

create_cortical_from_annotation("lh.aparc.annot")
create_cortical_from_gifti(...)
create_cortical_from_cifti(...)
create_subcortical_from_volume("aseg.mgz")
create_cerebellar_from_volume(...)
create_tract_from_tractography(...)
create_wholebrain_from_volume(...)

Then tidy the result with atlas_smooth(), atlas_simplify(), atlas_dilate() and atlas_polish(), and set up a package for it with setup_atlas_repo() and use_atlas_github_actions(). sitrep() reports whether the external tools it needs are present.

Checking your work

Does it render?

library(ggplot2)

dk() |>
  atlas_region_keep("temporal") |>
  brain_test_plot(
    position = position_brain(hemi ~ view)
  )

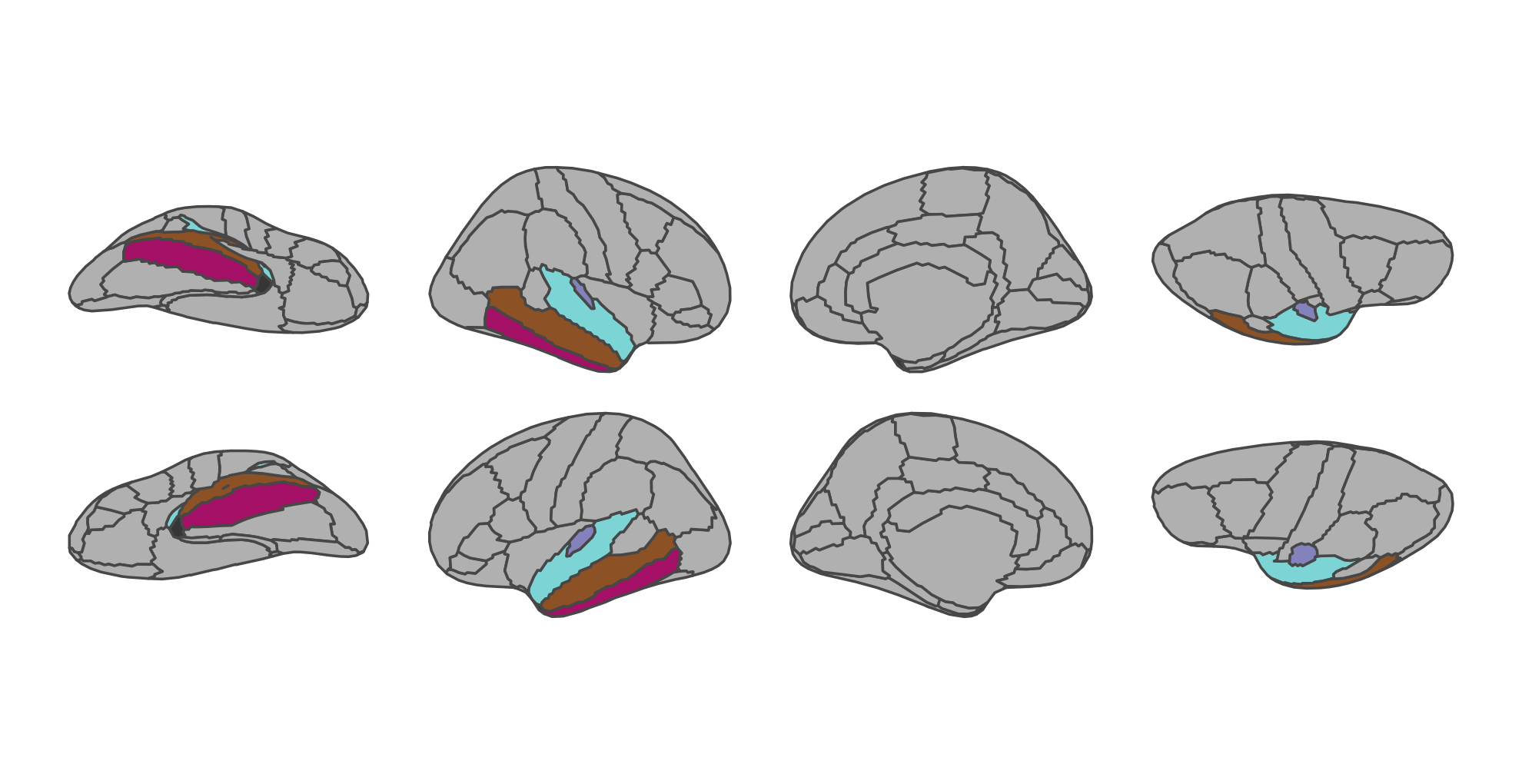

brain_test_plot() draws every region in its palette colour, so a region that has lost its geometry shows up as a hole. plot(atlas) is the quick version, and atlas_plot_palette(atlas) shows the colours on their own.

Validation

ggseg_atlas() checks on construction that:

type is one of the four known types
core has hemi, region and label
every label in data appears in core, and the reverse
the data container matches the declared type

A mismatch is a cli error naming the offending labels, not a silent coercion. is_ggseg_atlas() and the per-type predicates are the cheap checks to run first.

What an atlas package contains

An atlas package is a thin wrapper: the atlas object in data/, a function of the same name that returns it, and a data-raw/ script recording how it was built. setup_atlas_repo() lays this out for you.

library(ggsegYeo2011)

yeo7()
atlas_regions(yeo7())

Gotchas

Atlases are functions: dk(), not dk.
Vertex indices are 0-based; R is 1-based. Add one before indexing a mesh yourself.
A palette must cover every label, or set_atlas_palette() warns and the uncovered regions fall back to na.value.
Cortical meshes share vertex indices across regions, so they cannot be decimated. Subcortical meshes can.
atlas_region_remove() drops the region everywhere; use atlas_view_remove_region() to drop it from one view only.

Learn more

https://ggsegverse.github.io — ecosystem documentation
https://ggsegverse.r-universe.dev — every atlas package
https://github.com/ggsegverse — source and issues
