Brain atlas for the AtlasTrack probabilistic white matter fiber tract parcellation, commonly used with ABCD study data.
Value
A ggseg.formats::ggseg_atlas object.
References
Hagler DJ Jr, et al. (2019). "Image processing and analysis methods for the Adolescent Brain Cognitive Development Study." NeuroImage, 202:116091. doi:10.1016/j.neuroimage.2019.116091
Examples
atlastrack()
#>
#> ── atlastrack ggseg atlas ──────────────────────────────────────────────────────
#> Type: tract
#> Regions: 34
#> Hemispheres: right, left, midline
#> Views: coronal, inferior_axial, mid_axial, sagittal, superior_axial
#> Palette: ✔
#> Rendering: ✔ ggseg
#> ✔ ggseg3d (centerlines)
#> ────────────────────────────────────────────────────────────────────────────────
#> hemi region label
#> 1 right r fx R_Fx
#> 2 left l fx L_Fx
#> 3 right r cgc R_CgC
#> 4 left l cgc L_CgC
#> 5 right r cgh R_CgH
#> 6 left l cgh L_CgH
#> 7 right r cst R_CST
#> 8 left l cst L_CST
#> 9 right r atr R_ATR
#> 10 left l atr L_ATR
#> ... with 24 more rows
library(ggseg.formats)

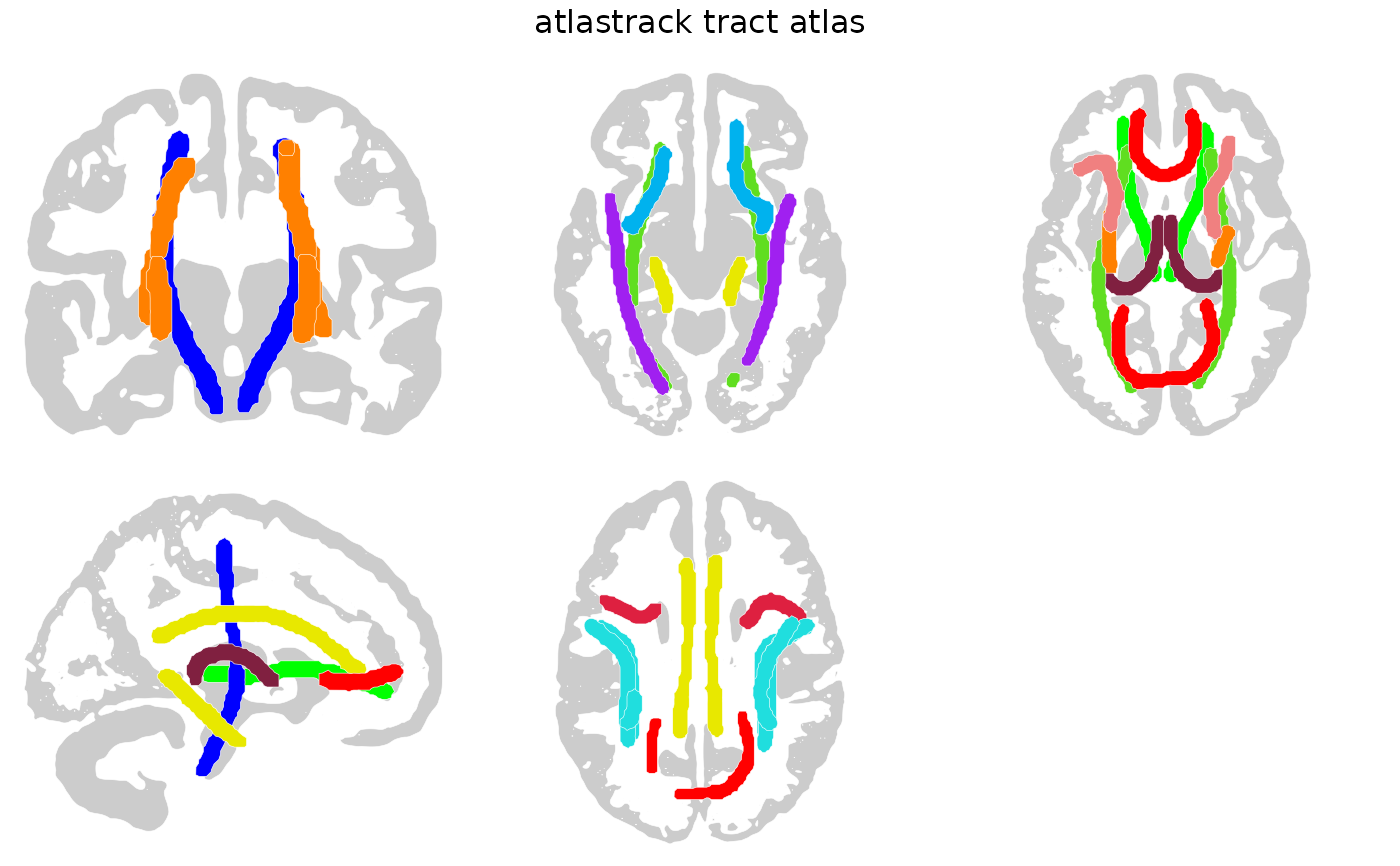

plot(atlastrack())
