Yeo 7-Network Cortical Atlas

Brain atlas for the Yeo et al. (2011) 7-network resting-state cortical parcellation. Contains 2D polygon geometry for ggseg::geom_brain().

Usage

yeo7()

Value

A ggseg.formats::ggseg_atlas object (cortical).

References

Yeo BTT, Krienen FM, Sepulcre J, et al. (2011). The organization of the human cerebral cortex estimated by intrinsic functional connectivity. Journal of Neurophysiology, 106(3):1125-1165. doi:10.1152/jn.00338.2011

See also

Other ggseg_atlases: yeo17()

Other cortical_atlases: yeo17()

Examples

yeo7()
#>
#> ── yeo7 ggseg atlas ────────────────────────────────────────────────────────────
#> Type: cortical
#> Regions: 7
#> Hemispheres: left, right
#> Views: inferior, lateral, medial, superior
#> Palette: ✔
#> Rendering: ✔ ggseg
#> ✔ ggseg3d (vertices)
#> ────────────────────────────────────────────────────────────────────────────────
#>     hemi      region          label
#> 1   left 7Networks_1 lh_7Networks_1
#> 2   left 7Networks_2 lh_7Networks_2
#> 3   left 7Networks_3 lh_7Networks_3
#> 4   left 7Networks_4 lh_7Networks_4
#> 5   left 7Networks_5 lh_7Networks_5
#> 6   left 7Networks_6 lh_7Networks_6
#> 7   left 7Networks_7 lh_7Networks_7
#> 8  right 7Networks_1 rh_7Networks_1
#> 9  right 7Networks_2 rh_7Networks_2
#> 10 right 7Networks_3 rh_7Networks_3
#> ... with 4 more rows

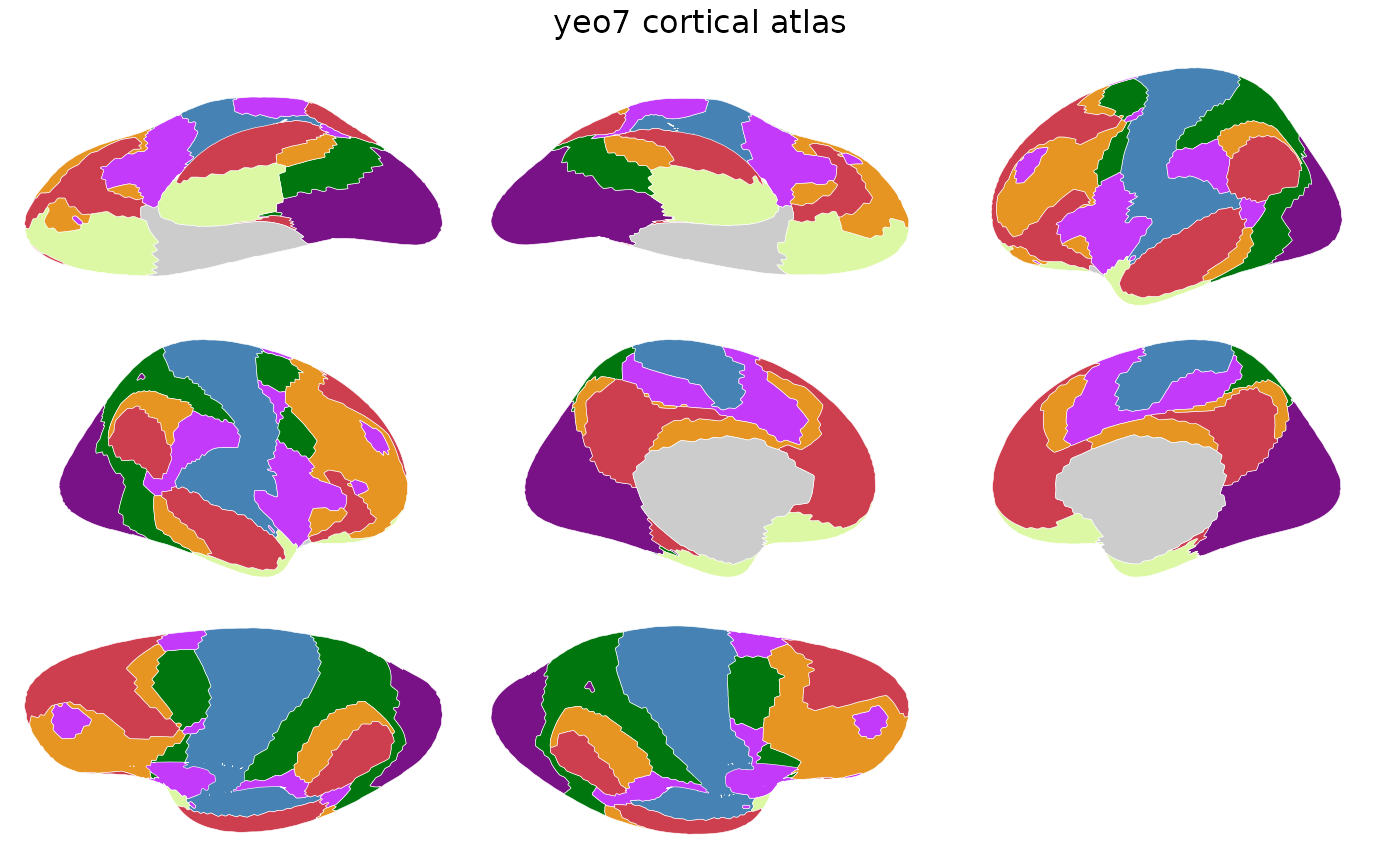

plot(yeo7())
