One atlas to rule them all: ggseg 2.0

If you’ve used ggseg for any length of time, you know the ceremony. You load ggseg for your 2D figures. You load ggseg3d for the 3D ones. You remember that the 2D atlas is called dk, but the 3D version is dk_3d. You keep both objects in your head, hoping they agree on region names. They usually do. Usually.

That entire dance is over. ggseg 2.0 ships a single, unified atlas format that works for both 2D and 3D visualization. One object. Both renderers. No suffix juggling.

Smaller atlases, faster everything

The old atlas format stored full 3D mesh geometry per region. Every cortical region carried its own copy of vertex coordinates and face indices — duplicating data that was mostly shared across the brain surface. Subcortical structures stored dense meshes straight from the segmentation. White matter tracts had no 3D representation at all.

The new format rethinks storage for each atlas type:

Cortical atlases store integer vertex indices instead of mesh geometry. Each region is just a vector of integers pointing into a shared fsaverage5 template mesh (10,242 vertices per hemisphere). The mesh itself lives once in ggseg.formats, not in every atlas package. The size difference is dramatic — a list of integers vs. thousands of duplicated 3D coordinates.

Subcortical atlases use decimated meshes. The raw marching-cubes output from volumetric segmentation is simplified to a fraction of the original face count while preserving shape. Smaller objects, faster rendering, same visual quality.

Tract atlases now have 3D support for the first time. Centerline geometry extracted from tractography streamlines is stored as tube centerlines rather than raw meshes. This is entirely new — tracts in ggseg v1 were 2D only.

The practical result: atlas packages shrink, install faster, and render faster. Plotting a cortical atlas in 3D loads one shared mesh and colors vertices by index lookup instead of assembling dozens of separate meshes. That’s a win at every level — package size on disk, download time, memory at runtime, and time to first plot.

What actually changed

Four packages were rewritten or substantially reworked. Here’s what happened and why it matters.

A new foundation: ggseg.formats

The biggest structural change is a new package called ggseg.formats that defines a single ggseg_atlas S3 class. Every atlas — cortical, subcortical, or white matter tract — now lives in one object that carries everything both renderers need: sf geometries for 2D plotting, vertex indices or meshes for 3D, region metadata, and a color palette.

library(ggseg)
library(ggplot2)

ggplot() +
  geom_brain(
    atlas = dk(),
    aes(fill = region),
    show.legend = FALSE
  ) +
  theme_void()

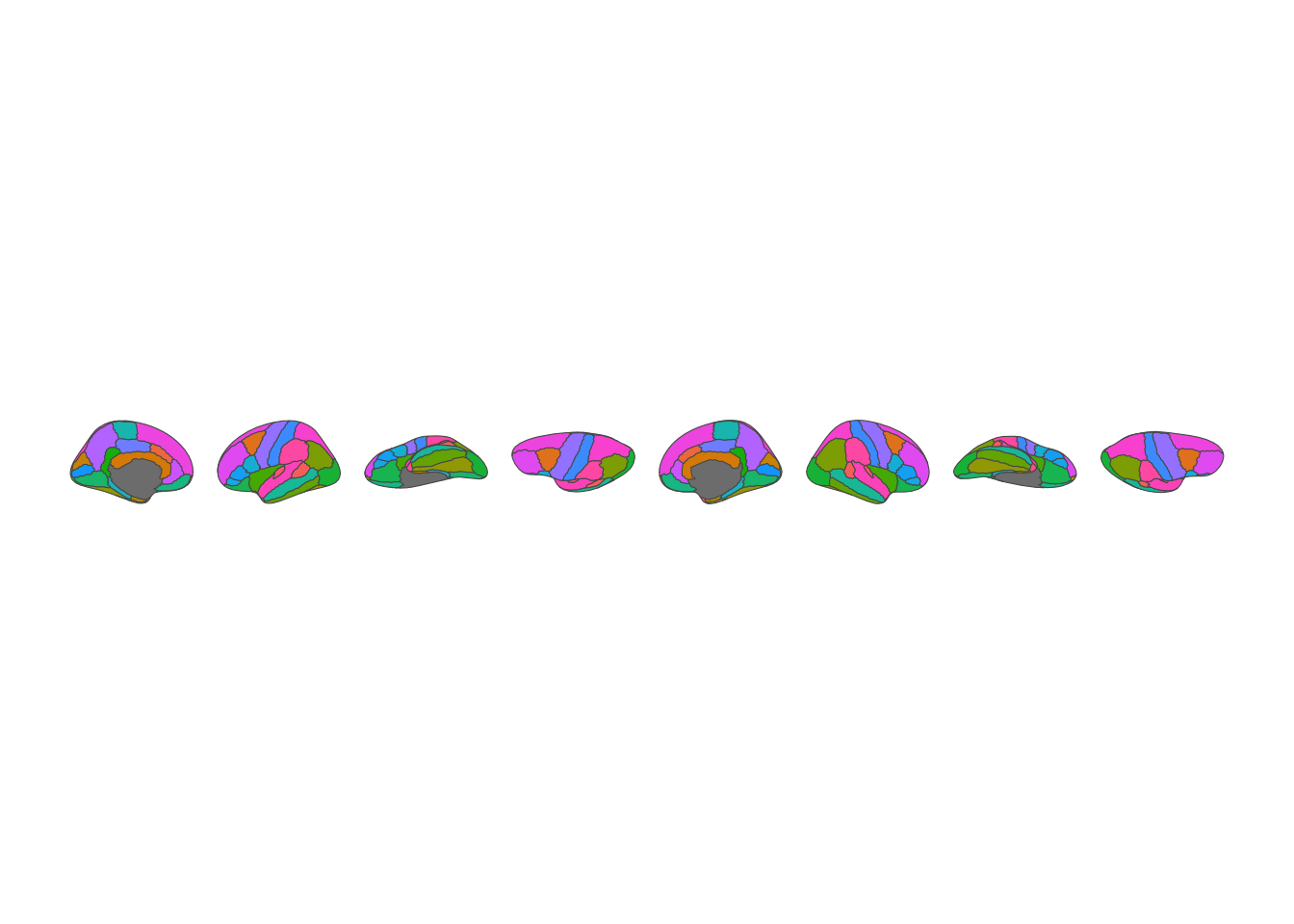

The dk atlas rendered in 2D with geom_brain()

library(ggseg3d)

ggseg3d(atlas = dk()) |>
  pan_camera("right lateral")

The same dk atlas rendered in 3D

The separate _3d objects are gone. If your code references dk_3d or aseg_3d, it will need updating — but the change is mechanical and the error messages will tell you what to do.

ggseg3d: from plotly to Three.js

The 3D renderer was rebuilt from scratch. plotly served well for years, but it struggled with the size of brain meshes and gave limited control over rendering. Plotly has also been retiring its R documentation and support, focusing resources on Python — not a foundation we want to build on going forward. The new engine uses Three.js through htmlwidgets, which means better performance, lower memory use, and a proper API for controlling the scene.

New capabilities include orthographic projection, glassbrain overlays, flat shading for exact color matching, edge rendering for region boundaries, and standard anatomical camera positions. The API is pipe-friendly:

ggseg3d(atlas = aseg()) |>
  set_background("#1a1a2e") |>
  set_flat_shading() |>
  add_glassbrain() |>
  pan_camera("left lateral")

Pipe-friendly 3D API with glassbrain overlay

Cortical atlases now use vertex-based coloring on a shared hemisphere mesh instead of rendering separate meshes per region. For a typical cortical atlas, this means loading one mesh of 10,242 vertices per hemisphere rather than dozens of individual region meshes. The difference in rendering speed and memory is substantial.

Atlas manipulation

ggseg.formats includes a set of pipe-friendly functions for working with atlases directly, without reaching for dplyr:

library(ggseg.formats)
custom_dk <- dk() |>
  atlas_region_keep("frontal|temporal") |>
  atlas_view_keep(c("lateral", "medial"))

ggplot() +
  geom_brain(
    atlas = custom_dk,
    aes(fill = region),
    show.legend = FALSE
  ) +
  theme_void()

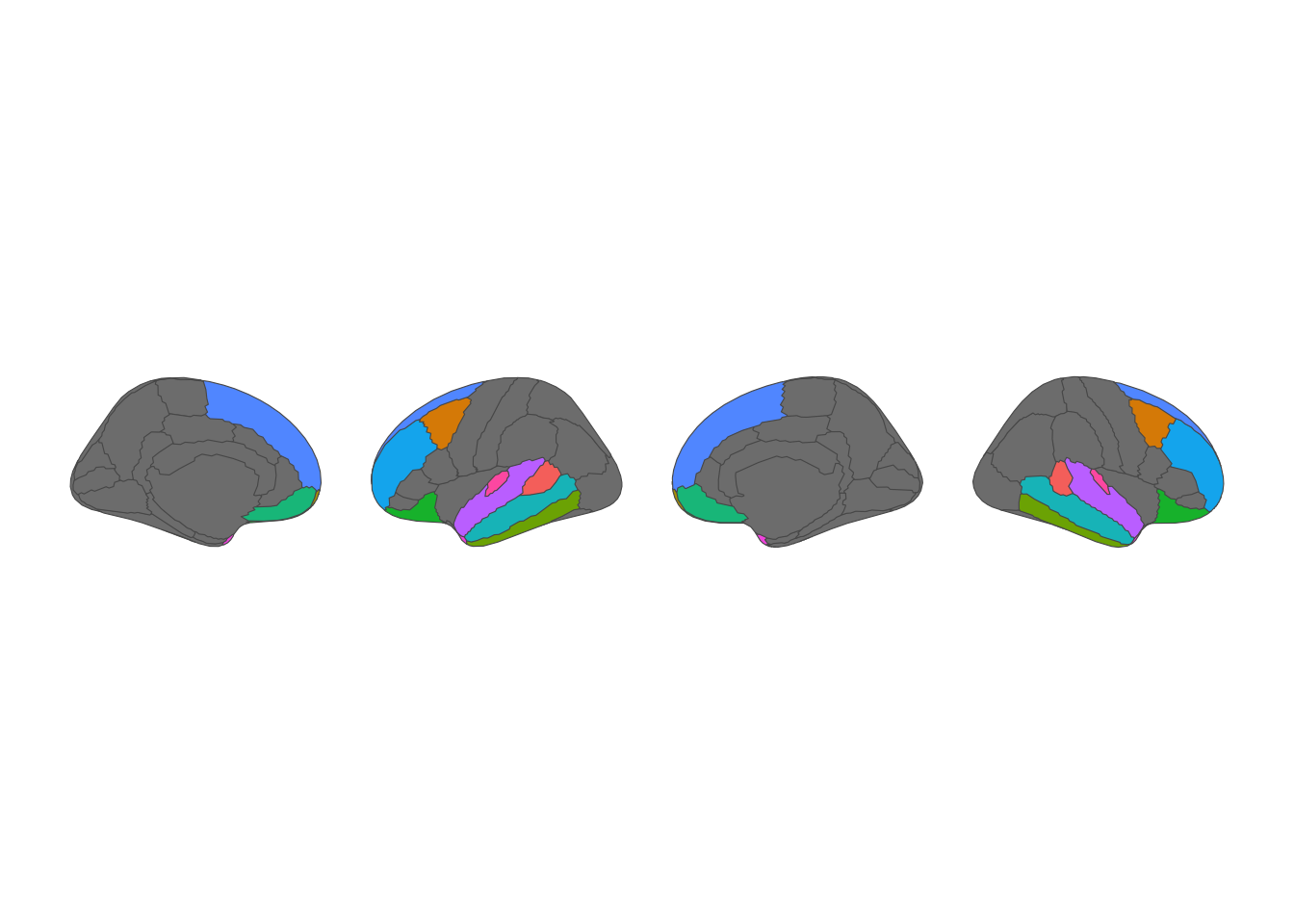

Filtering regions and views with pipe-friendly atlas functions

You can filter, rename, and reorder regions and views. You can mark regions as contextual (drawn in grey but excluded from legends). These operations return valid atlas objects, so you can pass the result straight to geom_brain() or ggseg3d().

White matter tracts in 3D

Tract atlases were 2D-only in ggseg v1. You could plot them as flat line drawings, but there was no way to render them in 3D.

That changes with v2. The tracula atlas — which ships with ggseg.formats — now carries tube centerline geometry that ggseg3d renders as 3D streamlines:

ggplot() +
  geom_brain(
    atlas = tracula(),
    show.legend = FALSE,
    aes(fill = region),
    position = position_brain(ncol = 3)
  ) +
  theme_void()

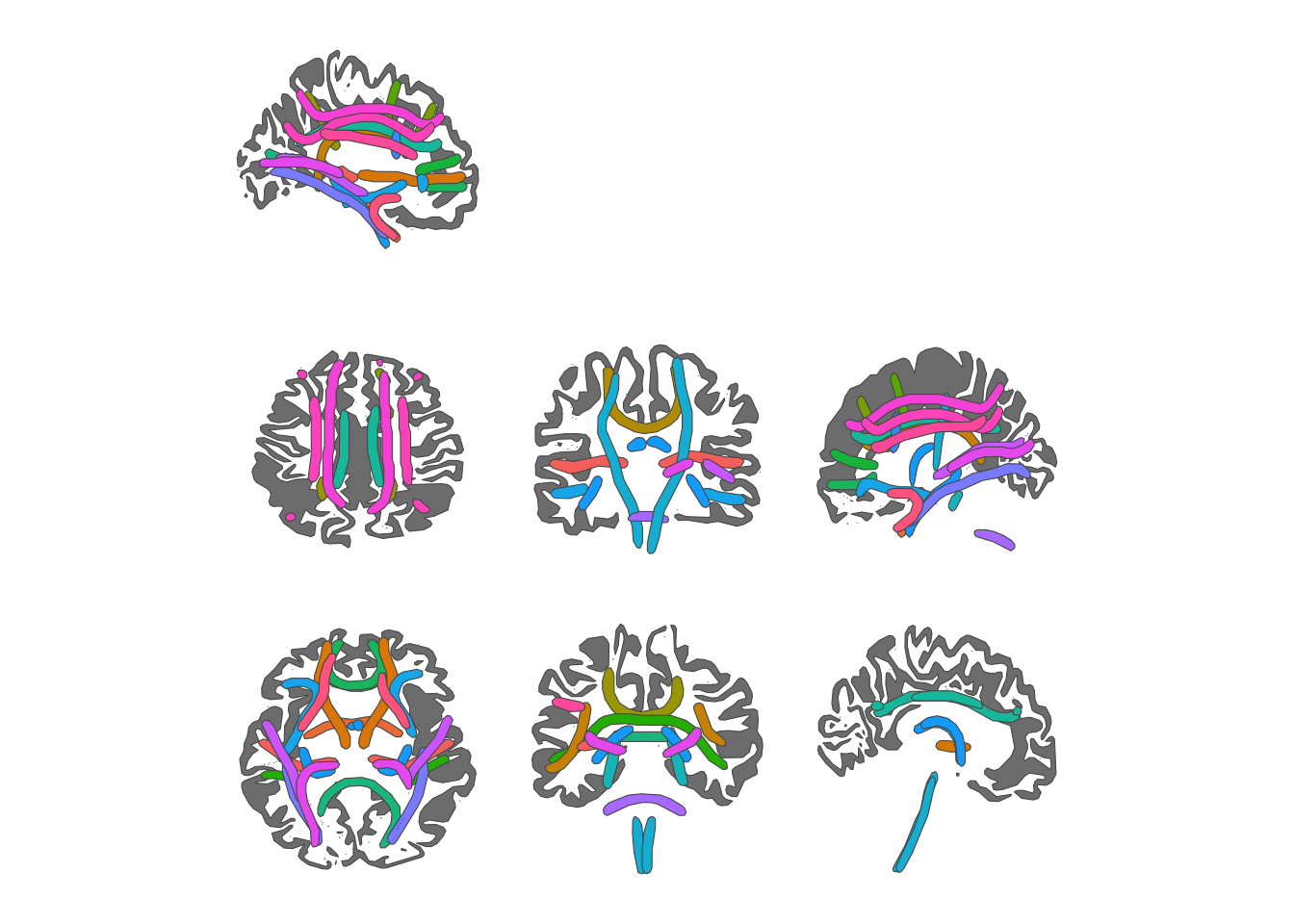

The tracula atlas in 2D

ggseg3d(atlas = tracula()) |>
  add_glassbrain() |>
  pan_camera("left lateral")

The same tracula atlas rendered in 3D — new in v2

Same atlas object, both renderers — just like cortical and subcortical. If you work with tractography data, this is probably the most visible new capability in the entire release.

Atlas data: functions, not objects

In ggseg v1, atlas packages shipped their data as lazy-loaded objects. You’d type dk and it was just there — sitting in your namespace the moment you loaded the package.

That’s gone. Atlas data now lives inside each package as internal data, accessed through exported functions. Where you used to write dk, you now write dk().

# ggseg v1
library(ggseg)
data(dk)
geom_brain(atlas = dk)

# ggseg v2
library(ggseg)
geom_brain(atlas = dk())

The parentheses matter. Without them, you’re referencing the function itself — not the atlas it returns.

Why the change? Lazy-loaded data objects created problems at scale — namespace collisions between packages, no control over when objects loaded, and difficulty distinguishing a data frame from an atlas sitting in your global environment. Functions make the contract explicit: call the function, get the atlas.

This applies to every atlas in the ecosystem. dk(), aseg(), tracula(), destrieux(), schaefer7_400() — all functions now.

ggseg.extra: rebuilt pipelines

The atlas creation tools in ggseg.extra were decomposed into smaller, more testable functions. The pipelines now support parallel processing through the future package and show progress bars via progressr. The old rgdal dependency (which was retired from CRAN) has been replaced with sf and terra.

Creation functions are named by atlas type and input format:

• create_cortical_from_annotation() builds from FreeSurfer annotation files
• create_cortical_from_labels() builds from FreeSurfer label files
• create_cortical_from_gifti() builds from GIFTI label files
• create_cortical_from_cifti() builds from CIFTI dense label files
• create_cortical_from_neuromaps() builds from neuromaps annotations
• create_subcortical_from_volume() builds from volumetric segmentation files
• create_tract_from_tractography() builds from tractography streamlines
• create_wholebrain_from_volume() is a new and experimental pipeline, building from whole-brain volumetric parcellation files

All produce unified ggseg_atlas objects directly.

TipContribute your own atlas

We hope these new pipelines make it possible for more people to create and share their own atlases. If you have a parcellation you’d like to see in the ecosystem, we’d love contributions.

What this means for you

If you use ggseg for figures in papers: Your geom_brain() calls work the same way — the only change is adding parentheses to atlas names. geom_brain(atlas = dk) becomes geom_brain(atlas = dk()). If you were using ggseg() directly, switch to ggplot() + geom_brain() — the old function is defunct. Update your atlas packages to v2.0, add parentheses, and things should work.

Here’s the common patterns you’ll need to update:

# v1 → v2

# Atlas access
dk            → dk()
data(dk)      → dk()

# Plotting
ggseg(atlas = dk)  → ggplot() + geom_brain(atlas = dk())

# 3D
ggseg3d(atlas = dk_3d)  → ggseg3d(atlas = dk())

If you maintain an atlas package: Your package needs updating. The separate 2D and 3D data objects merge into one, and atlas data moves from data/*.rda (lazy-loaded) to R/sysdata.rda (internal), exposed through an exported function. We provide both an automated conversion function (convert_legacy_brain_atlas()) and instructions for recreating atlases from source FreeSurfer files. Recreation is preferred — it ensures all atlases share the same coordinate space and produces cleaner geometry.

Note

PR’s to all known ggseg-atlases are already shipped. If you haven’t got one, get in touch.

If you build custom atlases: The new ggseg.extra pipelines are more modular and significantly easier to debug. Each step in the pipeline is a standalone function you can run and inspect. The contributing an atlas vignette walks through the full workflow — from data to packaged atlas.

The breaking changes, plainly

This is a major version bump. Things will break. Here’s what to watch for:

WarningWatch out for these

• Atlases are functions now. dk becomes dk(), aseg becomes aseg(), and so on. Bare names reference the function, not the data — you need the parentheses.
• data() calls are gone. Don’t call data(dk) — it won’t work. Just call dk() directly.
• ggseg() is defunct. Use ggplot() + geom_brain() instead.
• Objects named *_3d no longer exist. Use the base name — dk() carries both 2D and 3D data.
• Atlas packages depend on ggseg.formats. This is the new foundation package. It loads automatically when you load an atlas package.
• ggseg3d() returns an htmlwidget, not a plotly object. Old plotly-specific customization code won’t transfer.

The migration is mostly mechanical — find bare atlas names, add parentheses, swap ggseg() for geom_brain(). We chose to make a clean break rather than accumulate compatibility shims that would make the codebase harder to maintain long-term.

What’s next

The core packages are available now from r-universe. Atlas packages are being converted — some are already on v2.0, others are in progress. ggseg.formats, ggseg, and ggseg3d have all been accepted on CRAN in their new state, and we hope to ship ggseg.extra over the next week.

If you hit issues, open a discussion or file an issue on the relevant package repository. We’d rather hear about problems early than have people silently stuck.

install.packages(
  c("ggseg.formats", "ggseg", "ggseg3d", "ggseg.extra"),
  repos = c(
    "https://ggseg.r-universe.dev",
    "https://cloud.r-project.org"
  )
)
