Returns the Desikan-Killiany cortical parcellation atlas with 34 regions per hemisphere (68 total) on the cortical surface.
Value
A ggseg_atlas object with components:
- atlas
Character. Atlas name ("dk")
- type
Character. Atlas type ("cortical")
- palette
Named character vector of colours for each region
- data
A
ggseg_data_corticalobject containing:- vertices
Data frame with
labelandverticescolumns- sf
Simple features data frame for 2D rendering
Details
This atlas is based on the FreeSurfer aparc annotation and is one of the
most widely used cortical parcellations in neuroimaging research.
The atlas works with both ggseg (2D polygon plots) and ggseg3d (3D mesh visualizations) from a single object.
Regions
The atlas contains 34 regions per hemisphere including: banks of superior temporal sulcus, caudal anterior cingulate, caudal middle frontal, cuneus, entorhinal, fusiform, inferior parietal, inferior temporal, isthmus cingulate, lateral occipital, lateral orbitofrontal, lingual, medial orbitofrontal, middle temporal, parahippocampal, paracentral, pars opercularis, pars orbitalis, pars triangularis, pericalcarine, postcentral, posterior cingulate, precentral, precuneus, rostral anterior cingulate, rostral middle frontal, superior frontal, superior parietal, superior temporal, supramarginal, frontal pole, temporal pole, transverse temporal, and insula.
References
Desikan RS, Segonne F, Fischl B, et al. (2006). An automated labeling system for subdividing the human cerebral cortex on MRI scans into gyral based regions of interest. NeuroImage, 31(3):968-980. doi:10.1016/j.neuroimage.2006.01.021
Fischl B, van der Kouwe A, Destrieux C, et al. (2004). Automatically parcellating the human cerebral cortex. Cerebral Cortex, 14(1):11-22. doi:10.1093/cercor/bhg087
See also
aseg() for subcortical structures,
ggseg_atlas() for the atlas class constructor
Examples

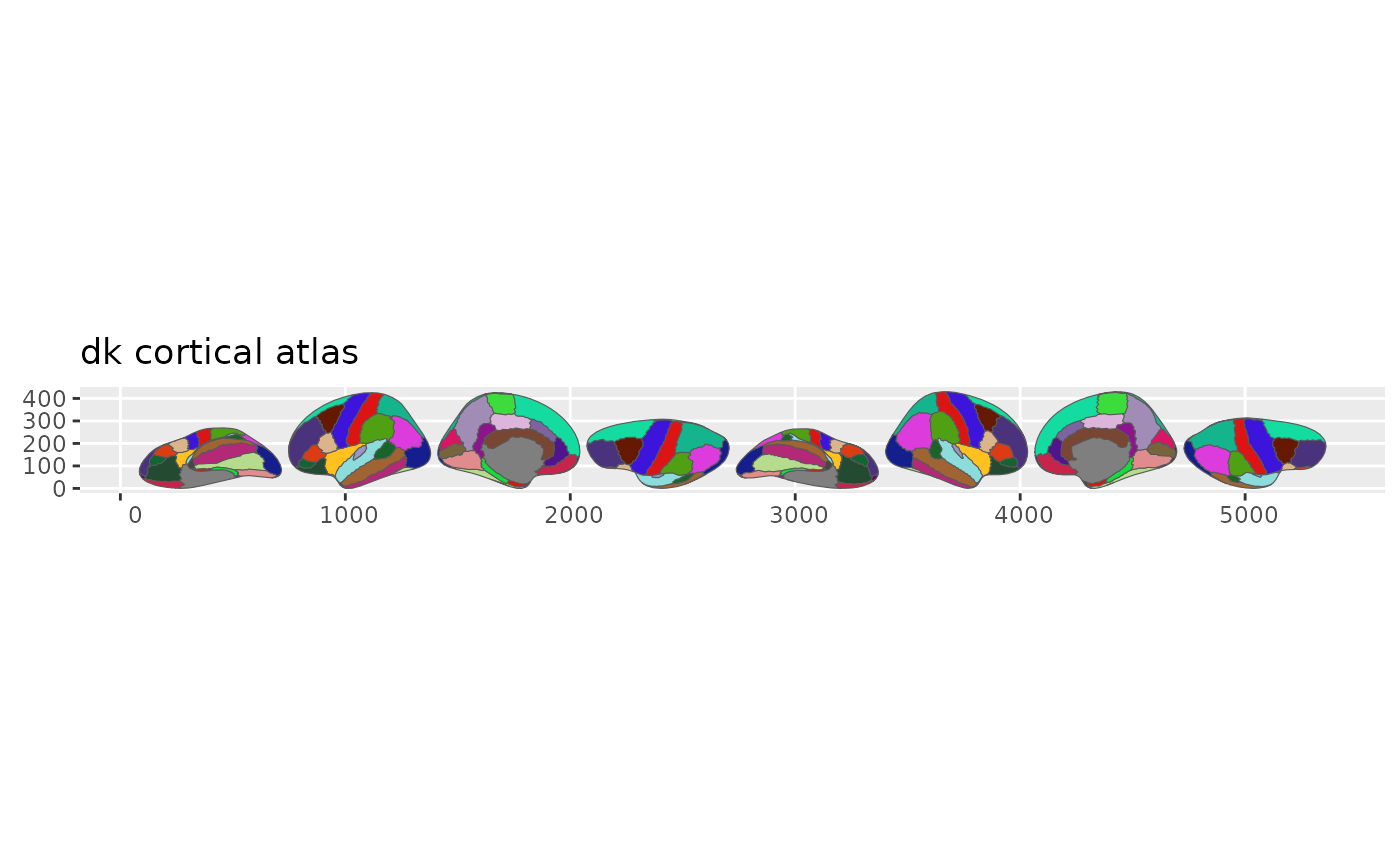

dk()
#>
#> ── dk ggseg atlas ──────────────────────────────────────────────────────────────
#> Type: cortical
#> Regions: 35
#> Hemispheres: left, right
#> Views: inferior, lateral, medial, superior
#> Palette: ✔
#> Rendering: ✔ ggseg
#> ✔ ggseg3d (vertices)
#> ────────────────────────────────────────────────────────────────────────────────
#> # A tibble: 70 × 4
#> hemi region label lobe
#> <chr> <chr> <chr> <chr>
#> 1 left banks of superior temporal sulcus lh_bankssts temporal
#> 2 left caudal anterior cingulate lh_caudalanteriorcingulate cingulate
#> 3 left caudal middle frontal lh_caudalmiddlefrontal frontal
#> 4 left corpus callosum lh_corpuscallosum white ma…
#> 5 left cuneus lh_cuneus occipital
#> 6 left entorhinal lh_entorhinal temporal
#> 7 left fusiform lh_fusiform temporal
#> 8 left inferior parietal lh_inferiorparietal parietal
#> 9 left inferior temporal lh_inferiortemporal temporal
#> 10 left isthmus cingulate lh_isthmuscingulate cingulate
#> 11 left lateral occipital lh_lateraloccipital occipital
#> 12 left lateral orbitofrontal lh_lateralorbitofrontal frontal
#> 13 left lingual lh_lingual occipital
#> 14 left medial orbitofrontal lh_medialorbitofrontal frontal
#> 15 left middle temporal lh_middletemporal temporal
#> 16 left parahippocampal lh_parahippocampal temporal
#> 17 left paracentral lh_paracentral frontal
#> 18 left pars opercularis lh_parsopercularis frontal
#> 19 left pars orbitalis lh_parsorbitalis frontal
#> 20 left pars triangularis lh_parstriangularis frontal
#> 21 left pericalcarine lh_pericalcarine occipital
#> 22 left postcentral lh_postcentral parietal
#> 23 left posterior cingulate lh_posteriorcingulate cingulate
#> 24 left precentral lh_precentral frontal
#> 25 left precuneus lh_precuneus parietal
#> 26 left rostral anterior cingulate lh_rostralanteriorcingulate cingulate
#> 27 left rostral middle frontal lh_rostralmiddlefrontal frontal
#> 28 left superior frontal lh_superiorfrontal frontal
#> 29 left superior parietal lh_superiorparietal parietal
#> 30 left superior temporal lh_superiortemporal temporal
#> 31 left supramarginal lh_supramarginal parietal
#> 32 left frontal pole lh_frontalpole frontal
#> 33 left temporal pole lh_temporalpole temporal
#> 34 left transverse temporal lh_transversetemporal temporal
#> 35 left insula lh_insula insula
#> 36 right banks of superior temporal sulcus rh_bankssts temporal
#> 37 right caudal anterior cingulate rh_caudalanteriorcingulate cingulate
#> 38 right caudal middle frontal rh_caudalmiddlefrontal frontal
#> 39 right corpus callosum rh_corpuscallosum white ma…
#> 40 right cuneus rh_cuneus occipital
#> 41 right entorhinal rh_entorhinal temporal
#> 42 right fusiform rh_fusiform temporal
#> 43 right inferior parietal rh_inferiorparietal parietal
#> 44 right inferior temporal rh_inferiortemporal temporal
#> 45 right isthmus cingulate rh_isthmuscingulate cingulate
#> 46 right lateral occipital rh_lateraloccipital occipital
#> 47 right lateral orbitofrontal rh_lateralorbitofrontal frontal
#> 48 right lingual rh_lingual occipital
#> 49 right medial orbitofrontal rh_medialorbitofrontal frontal
#> 50 right middle temporal rh_middletemporal temporal
#> 51 right parahippocampal rh_parahippocampal temporal
#> 52 right paracentral rh_paracentral frontal
#> 53 right pars opercularis rh_parsopercularis frontal
#> 54 right pars orbitalis rh_parsorbitalis frontal
#> 55 right pars triangularis rh_parstriangularis frontal
#> 56 right pericalcarine rh_pericalcarine occipital
#> 57 right postcentral rh_postcentral parietal
#> 58 right posterior cingulate rh_posteriorcingulate cingulate
#> 59 right precentral rh_precentral frontal
#> 60 right precuneus rh_precuneus parietal
#> 61 right rostral anterior cingulate rh_rostralanteriorcingulate cingulate
#> 62 right rostral middle frontal rh_rostralmiddlefrontal frontal
#> 63 right superior frontal rh_superiorfrontal frontal
#> 64 right superior parietal rh_superiorparietal parietal
#> 65 right superior temporal rh_superiortemporal temporal
#> 66 right supramarginal rh_supramarginal parietal
#> 67 right frontal pole rh_frontalpole frontal
#> 68 right temporal pole rh_temporalpole temporal
#> 69 right transverse temporal rh_transversetemporal temporal
#> 70 right insula rh_insula insula
atlas_regions(dk())
#> [1] "banks of superior temporal sulcus" "caudal anterior cingulate"
#> [3] "caudal middle frontal" "corpus callosum"
#> [5] "cuneus" "entorhinal"
#> [7] "frontal pole" "fusiform"
#> [9] "inferior parietal" "inferior temporal"
#> [11] "insula" "isthmus cingulate"
#> [13] "lateral occipital" "lateral orbitofrontal"
#> [15] "lingual" "medial orbitofrontal"
#> [17] "middle temporal" "paracentral"
#> [19] "parahippocampal" "pars opercularis"
#> [21] "pars orbitalis" "pars triangularis"
#> [23] "pericalcarine" "postcentral"
#> [25] "posterior cingulate" "precentral"
#> [27] "precuneus" "rostral anterior cingulate"
#> [29] "rostral middle frontal" "superior frontal"
#> [31] "superior parietal" "superior temporal"
#> [33] "supramarginal" "temporal pole"
#> [35] "transverse temporal"
atlas_labels(dk())
#> [1] "lh_bankssts" "lh_caudalanteriorcingulate"
#> [3] "lh_caudalmiddlefrontal" "lh_corpuscallosum"
#> [5] "lh_cuneus" "lh_entorhinal"
#> [7] "lh_frontalpole" "lh_fusiform"
#> [9] "lh_inferiorparietal" "lh_inferiortemporal"
#> [11] "lh_insula" "lh_isthmuscingulate"
#> [13] "lh_lateraloccipital" "lh_lateralorbitofrontal"
#> [15] "lh_lingual" "lh_medialorbitofrontal"
#> [17] "lh_middletemporal" "lh_paracentral"
#> [19] "lh_parahippocampal" "lh_parsopercularis"
#> [21] "lh_parsorbitalis" "lh_parstriangularis"
#> [23] "lh_pericalcarine" "lh_postcentral"
#> [25] "lh_posteriorcingulate" "lh_precentral"
#> [27] "lh_precuneus" "lh_rostralanteriorcingulate"
#> [29] "lh_rostralmiddlefrontal" "lh_superiorfrontal"
#> [31] "lh_superiorparietal" "lh_superiortemporal"
#> [33] "lh_supramarginal" "lh_temporalpole"
#> [35] "lh_transversetemporal" "rh_bankssts"
#> [37] "rh_caudalanteriorcingulate" "rh_caudalmiddlefrontal"
#> [39] "rh_corpuscallosum" "rh_cuneus"
#> [41] "rh_entorhinal" "rh_frontalpole"
#> [43] "rh_fusiform" "rh_inferiorparietal"
#> [45] "rh_inferiortemporal" "rh_insula"
#> [47] "rh_isthmuscingulate" "rh_lateraloccipital"
#> [49] "rh_lateralorbitofrontal" "rh_lingual"
#> [51] "rh_medialorbitofrontal" "rh_middletemporal"
#> [53] "rh_paracentral" "rh_parahippocampal"
#> [55] "rh_parsopercularis" "rh_parsorbitalis"
#> [57] "rh_parstriangularis" "rh_pericalcarine"
#> [59] "rh_postcentral" "rh_posteriorcingulate"
#> [61] "rh_precentral" "rh_precuneus"
#> [63] "rh_rostralanteriorcingulate" "rh_rostralmiddlefrontal"
#> [65] "rh_superiorfrontal" "rh_superiorparietal"
#> [67] "rh_superiortemporal" "rh_supramarginal"
#> [69] "rh_temporalpole" "rh_transversetemporal"
