Returns the TRACULA (TRActs Constrained by UnderLying Anatomy) white matter bundle atlas in MNI space.

Usage

tracula()

Value

A ggseg_atlas object with components:

atlas

Character. Atlas name ("tracula")

type

Character. Atlas type ("tract")

palette

Named character vector of colours for each tract

data

A ggseg_data_tract object containing:

centerlines

List of centerline matrices per tract

sf

Simple features data frame for 2D rendering

Details

This atlas contains major white matter tracts reconstructed from diffusion MRI using FreeSurfer's TRACULA training data. It works with both ggseg (2D slice projections) and ggseg3d (3D tube mesh visualizations).

Core columns

core carries one row per atlas region with the columns hemi, region, label and names, plus the atlas's own grouping column. label is the stable atlas identifier and the key the palette and the geometry are keyed on; region is a short, hemisphere-free key derived from it; names is the curated long-form display name, spelled out to read well in a figure legend.

region held the long-form name until version 0.1.0. names is not a record of those old values – use legacy_region_map() to translate them.

Tract labels

label is the name FreeSurfer's TRACULA writes its per-pathway outputs under, including the trailing .bbr.prep (for example lh.af.bbr.prep), so a table of TRACULA output joins to the atlas as it comes. label_short is the same identifier with the suffix stripped – the name FreeSurferColorLUT.txt gives the pathway at ids 5100-5399.

References

Yendiki A, Panneck P, Srinivasan P, et al. (2011). Automated probabilistic reconstruction of white-matter pathways in health and disease using an atlas of the underlying anatomy. Frontiers in Neuroinformatics, 5:23. doi:10.3389/fninf.2011.00023

See also

dk() for cortical parcellation, aseg() for subcortical structures, ggseg_atlas() for the atlas class constructor

Other ggseg_atlases: aseg(), dk(), suit()

Examples

tracula()
#>
#> ── tracula ggseg atlas ─────────────────────────────────────────────────────────
#> Type: tract
#> Regions: 26
#> Hemispheres: midline, left, right
#> Views: superior_axial, mid_axial, inferior_axial, coronal, sagittal
#> Palette: ✔
#> Rendering: ✔ ggseg
#> ✔ ggseg3d (centerlines)
#> ────────────────────────────────────────────────────────────────────────────────
#>       hemi      region                label label_short
#> 1  midline       acomm       acomm.bbr.prep       acomm
#> 2  midline    cc bodyc    cc.bodyc.bbr.prep    cc.bodyc
#> 3  midline    cc bodyp    cc.bodyp.bbr.prep    cc.bodyp
#> 4  midline   cc bodypf   cc.bodypf.bbr.prep   cc.bodypf
#> 5  midline   cc bodypm   cc.bodypm.bbr.prep   cc.bodypm
#> 6  midline    cc bodyt    cc.bodyt.bbr.prep    cc.bodyt
#> 7  midline     cc genu     cc.genu.bbr.prep     cc.genu
#> 8  midline  cc rostrum  cc.rostrum.bbr.prep  cc.rostrum
#> 9  midline cc splenium cc.splenium.bbr.prep cc.splenium
#> 10    left          af       lh.af.bbr.prep       lh.af
#>                            display           group
#> 1              anterior commissure      commissure
#> 2     corpus callosum body central corpus callosum
#> 3    corpus callosum body parietal corpus callosum
#> 4  corpus callosum body prefrontal corpus callosum
#> 5    corpus callosum body premotor corpus callosum
#> 6    corpus callosum body temporal corpus callosum
#> 7             corpus callosum genu corpus callosum
#> 8          corpus callosum rostrum corpus callosum
#> 9         corpus callosum splenium corpus callosum
#> 10              arcuate fasciculus     association
#> ... with 32 more rows

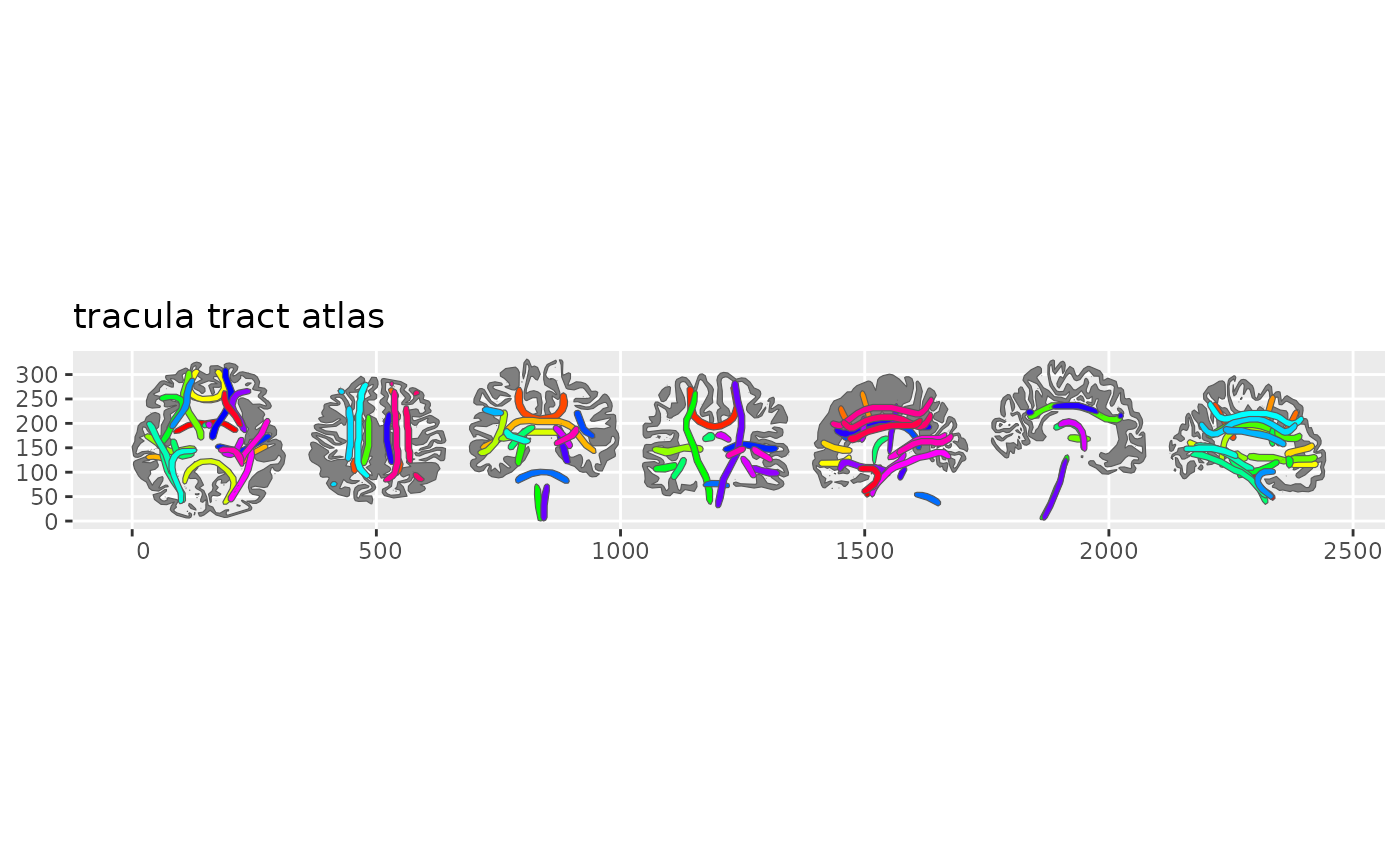

plot(tracula())

atlas_regions(tracula())
#>  [1] "acomm"       "cc bodyc"    "cc bodyp"    "cc bodypf"   "cc bodypm"
#>  [6] "cc bodyt"    "cc genu"     "cc rostrum"  "cc splenium" "af"
#> [11] "ar"          "atr"         "cbd"         "cbv"         "cst"
#> [16] "emc"         "fat"         "fx"          "ilf"         "mlf"
#> [21] "or"          "slf1"        "slf2"        "slf3"        "uf"
#> [26] "mcp"         "af"          "ar"          "atr"         "cbd"
#> [31] "cbv"         "cst"         "emc"         "fat"         "fx"
#> [36] "ilf"         "mlf"         "or"          "slf1"        "slf2"
#> [41] "slf3"        "uf"
