ggseg3d turns brain segmentation data into 3D meshes you can rotate, colour, and export. Version 2.0 replaced the Plotly backend with Three.js — smaller widgets, faster rendering, and a pipe-friendly API that shares atlas objects with the 2D side (ggseg).

This walkthrough covers the full surface area: cortical atlases, subcortical structures, white matter tracts, camera control, colour palettes, edge rendering, and static exports.

Basic usage

One call gets you an interactive brain:

ggseg3d(hemisphere = "left") |>
  pan_camera("left lateral")

Click and drag to rotate, scroll to zoom, right-click to pan. Hover over any region to see its name.

Camera positions

pan_camera() snaps the camera to standard anatomical views:

ggseg3d() |>
  pan_camera("left lateral")

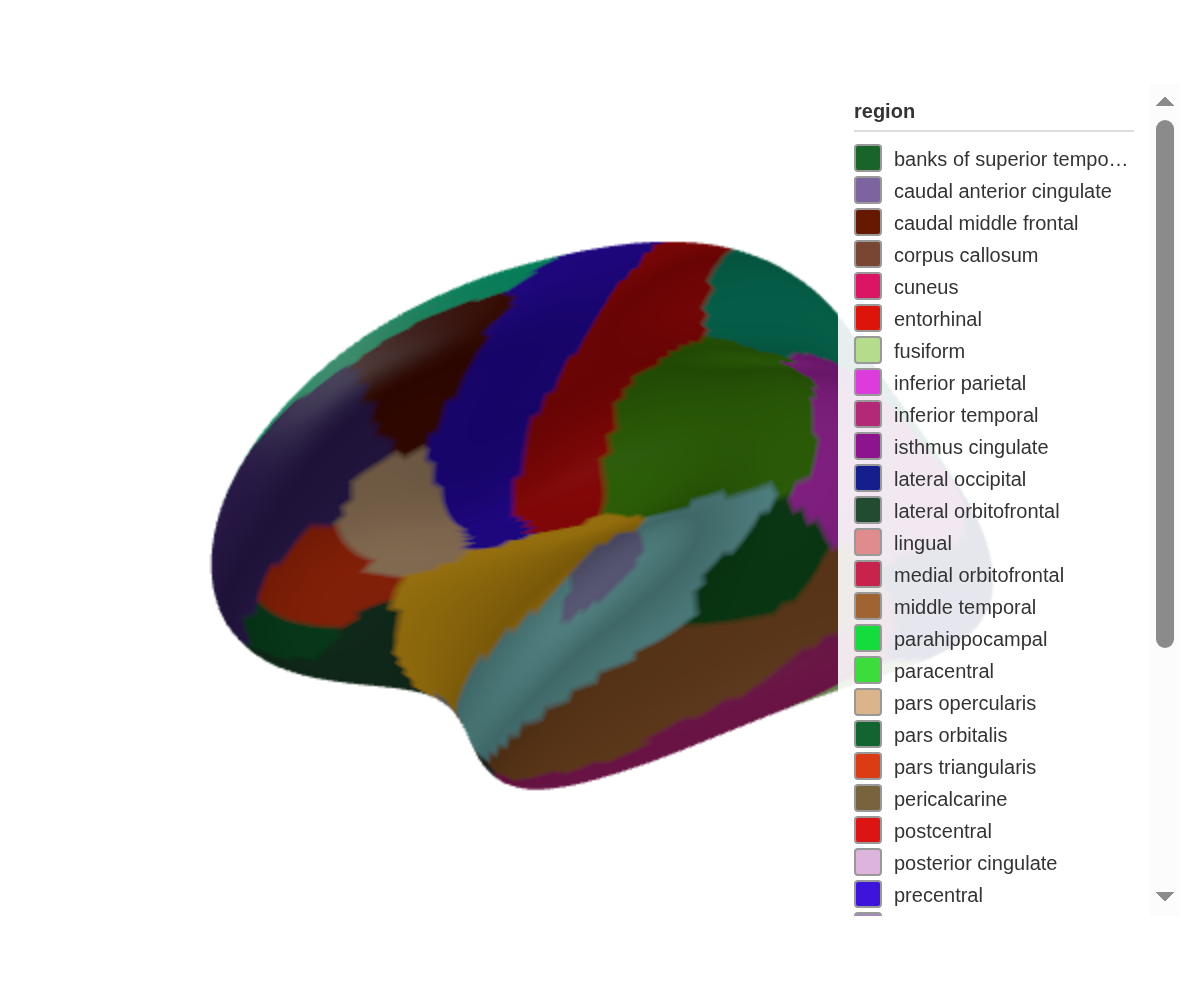

Left hemisphere from the lateral side, showing the full extent of frontal, parietal, temporal, and occipital cortex.
Left hemisphere from the lateral side, showing the full extent of frontal, parietal, temporal, and occipital cortex.

The full set of presets:

  • left lateral, right lateral
  • left medial, right medial
  • left superior, right superior
  • left inferior, right inferior
  • left anterior, right anterior
  • left posterior, right posterior

For anything else, pass explicit coordinates:

ggseg3d() |>
  pan_camera(list(eye = list(x = -200, y = 100, z = 100)))

Plotting your data

The core workflow: bring a data frame with a region (or label) column that matches the atlas, then map a variable to colour_by. Add text_by to surface values in the hover tooltip:

some_data <- tibble(
  region = c("precentral", "postcentral", "insula", "superior parietal"),
  p = c(0.01, 0.04, 0.2, 0.5)
)

ggseg3d(.data = some_data, atlas = dk(), colour_by = "p", text_by = "p") |>
  pan_camera("right lateral")

Hover over the coloured regions — the tooltip now shows each region’s p-value.

Custom colour palettes

An unnamed vector defines the gradient endpoints:

ggseg3d(
  .data = some_data,
  atlas = dk(),
  colour_by = "p",
  palette = c("forestgreen", "white", "firebrick")
)

A named vector pins colours to specific breakpoints, which lets the scale extend beyond your data range:

ggseg3d(
  .data = some_data,
  atlas = dk(),
  colour_by = "p",
  text_by = "p",
  palette = c("forestgreen" = 0, "white" = .05, "firebrick" = 1)
)

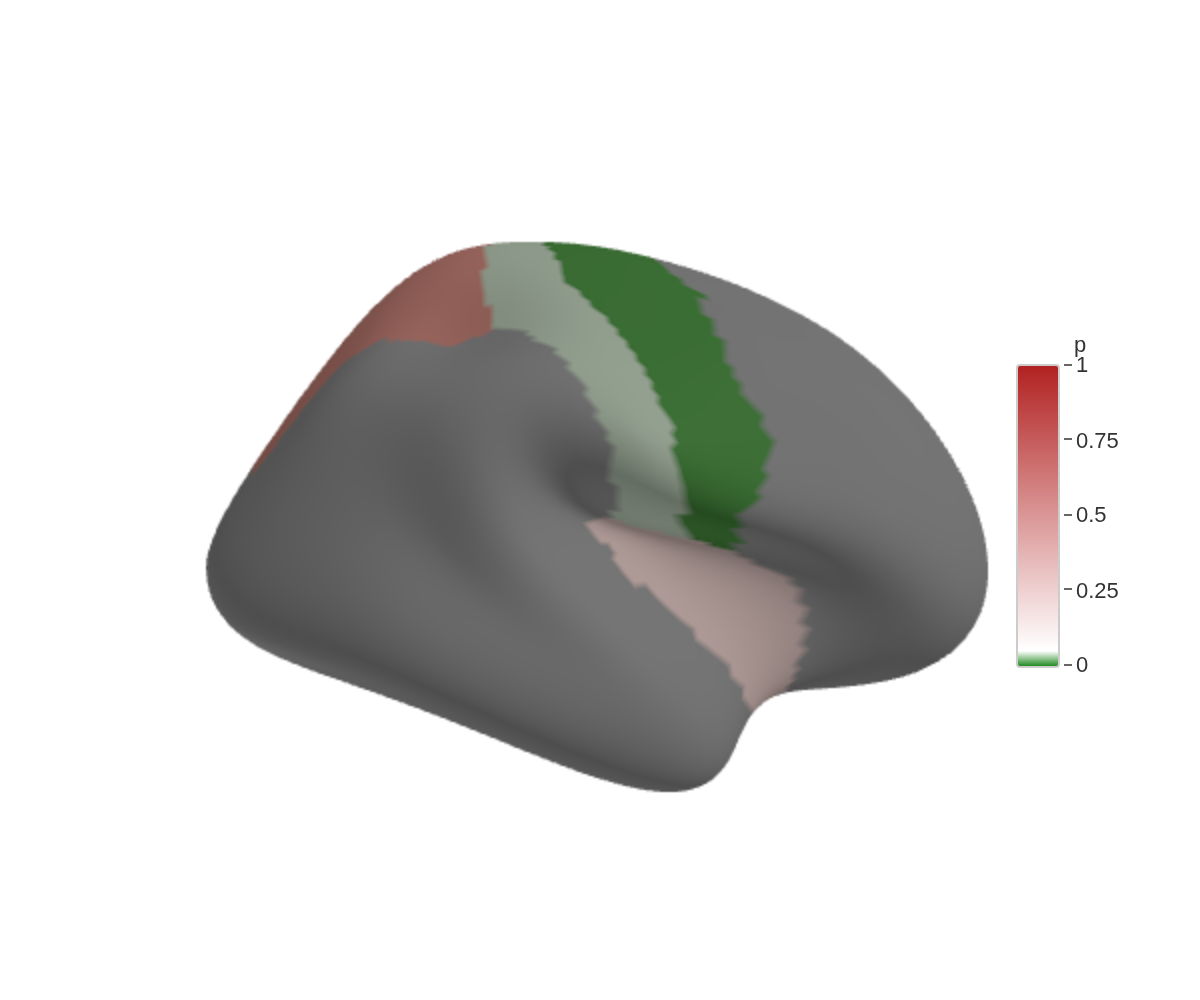

Four cortical regions on a green-white-red gradient anchored at 0, 0.05, and 1; the colour bar extends to cover the full 0-1 range.
Four cortical regions on a green-white-red gradient anchored at 0, 0.05, and 1; the colour bar extends to cover the full 0-1 range.

Background colour

White works for most journals. Dark backgrounds work for slides:

ggseg3d() |>
  set_background("black")

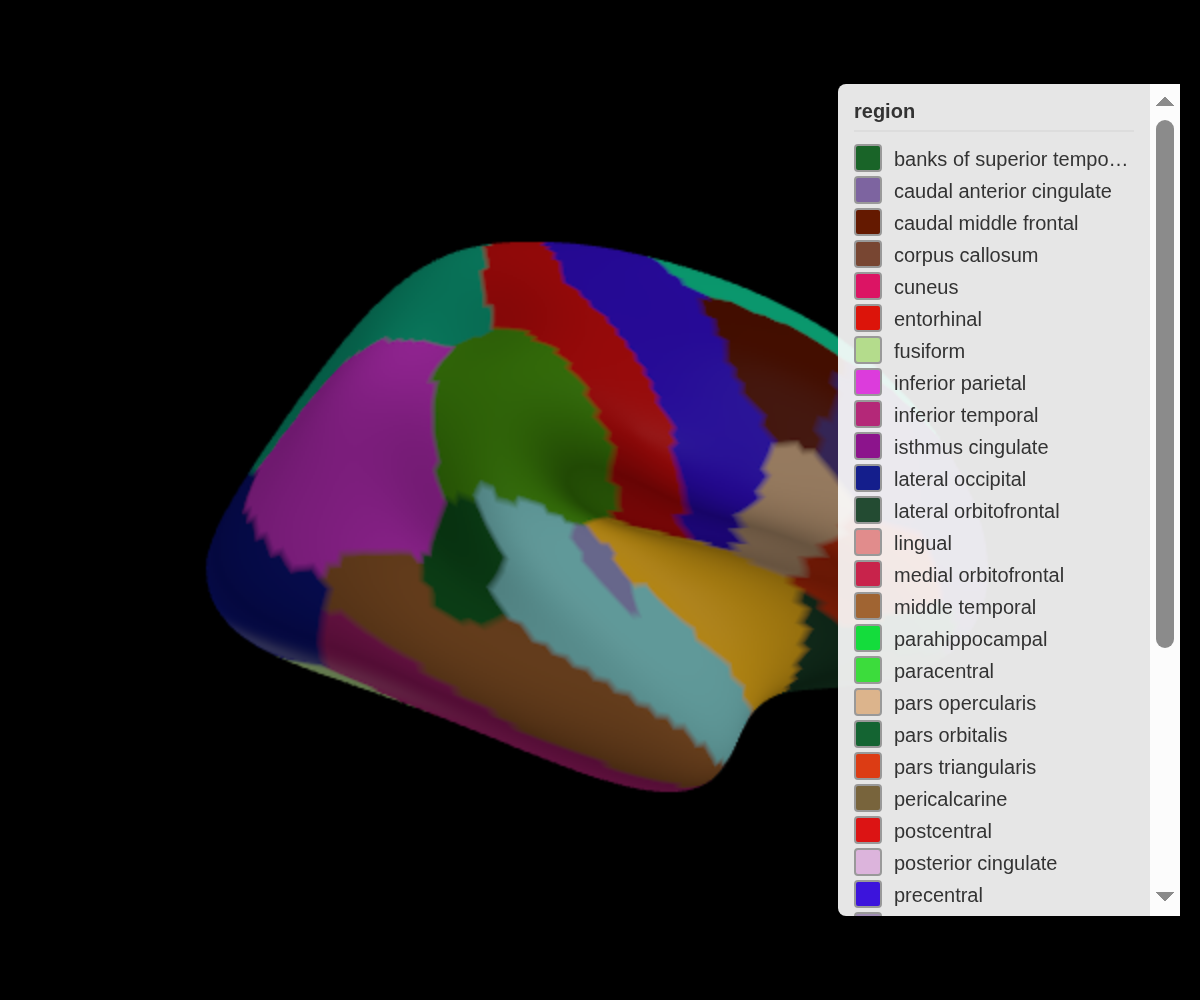

Both hemispheres of the DK atlas on a black canvas, region colours standing out against the dark background.
Both hemispheres of the DK atlas on a black canvas, region colours standing out against the dark background.

Region edges

Experimental. Edge rendering works in the htmlwidget viewer. rgl support (ggsegray) is still unreliable across platforms.

set_edges() draws outlines along region boundaries:

ggseg3d(hemisphere = "left") |>
  set_edges("black", width = 10) |>
  pan_camera("left lateral")

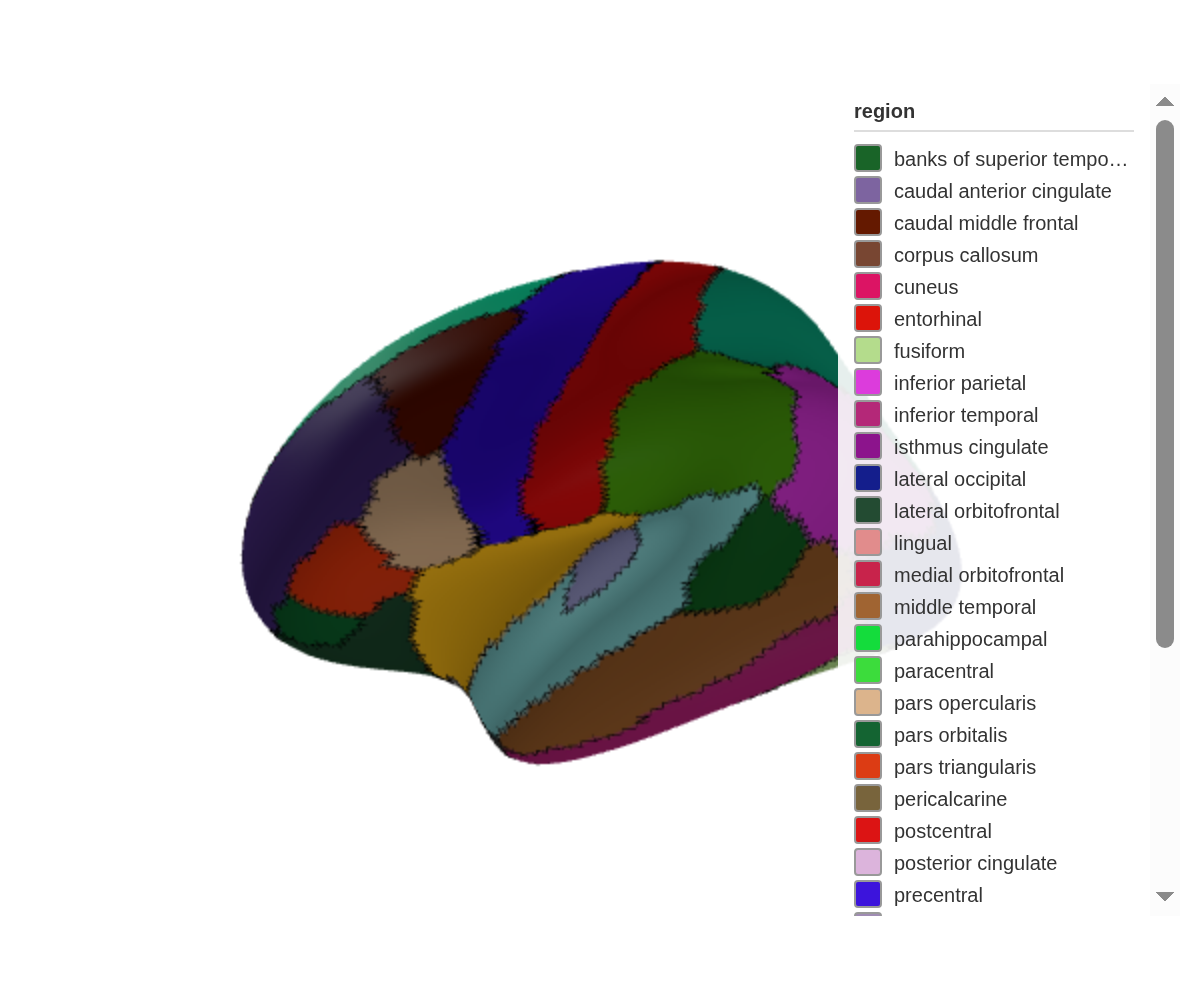

Left hemisphere with thick black lines tracing every region boundary, making the parcellation structure clearly visible.
Left hemisphere with thick black lines tracing every region boundary, making the parcellation structure clearly visible.

Grouping edges with edge_by

By default, edges appear wherever adjacent vertices have different colours. edge_by lets you group edges by a different column — useful when you want boundaries between lobes but not between individual regions within the same lobe:

lobe_data <- tibble(
  region = c("precentral", "postcentral", "insula", "superior parietal"),
  p = c(0.2, 0.4, 0.3, 0.5),
  lobe = c("frontal", "parietal", "insula", "parietal")
)

ggseg3d(.data = lobe_data, atlas = dk(), colour_by = "p", edge_by = "lobe") |>
  set_edges("white", width = 1) |>
  set_background("black")
White edge lines on a black background separating frontal, parietal, and insular lobes; regions within the same lobe share a boundary-free surface.
White edge lines on a black background separating frontal, parietal, and insular lobes; regions within the same lobe share a boundary-free surface.

Subcortical structures

The aseg atlas covers structures beneath the cortex. Fade unmatched regions with na_alpha and wrap everything in a glass brain:

subcort_data <- tibble(
  region = c("Thalamus", "Caudate", "Hippocampus"),
  p = c(0.2, 0.5, 0.8)
)

ggseg3d(
  .data = subcort_data,
  atlas = aseg(),
  colour_by = "p",
  text_by = "p",
  na_alpha = .5
) |>
  add_glassbrain()
Thalamus, caudate, and hippocampus coloured by p-value, floating inside a translucent cortical shell that provides spatial context.
Thalamus, caudate, and hippocampus coloured by p-value, floating inside a translucent cortical shell that provides spatial context.

The glass brain is just a translucent cortical surface — enough anatomy to orient the viewer without hiding the structures underneath.

White matter tracts

The tracula atlas renders white matter pathways as tube meshes. A near-invisible glass brain keeps things oriented:

ggseg3d(atlas = tracula()) |>
  add_glassbrain(opacity = 0.1)

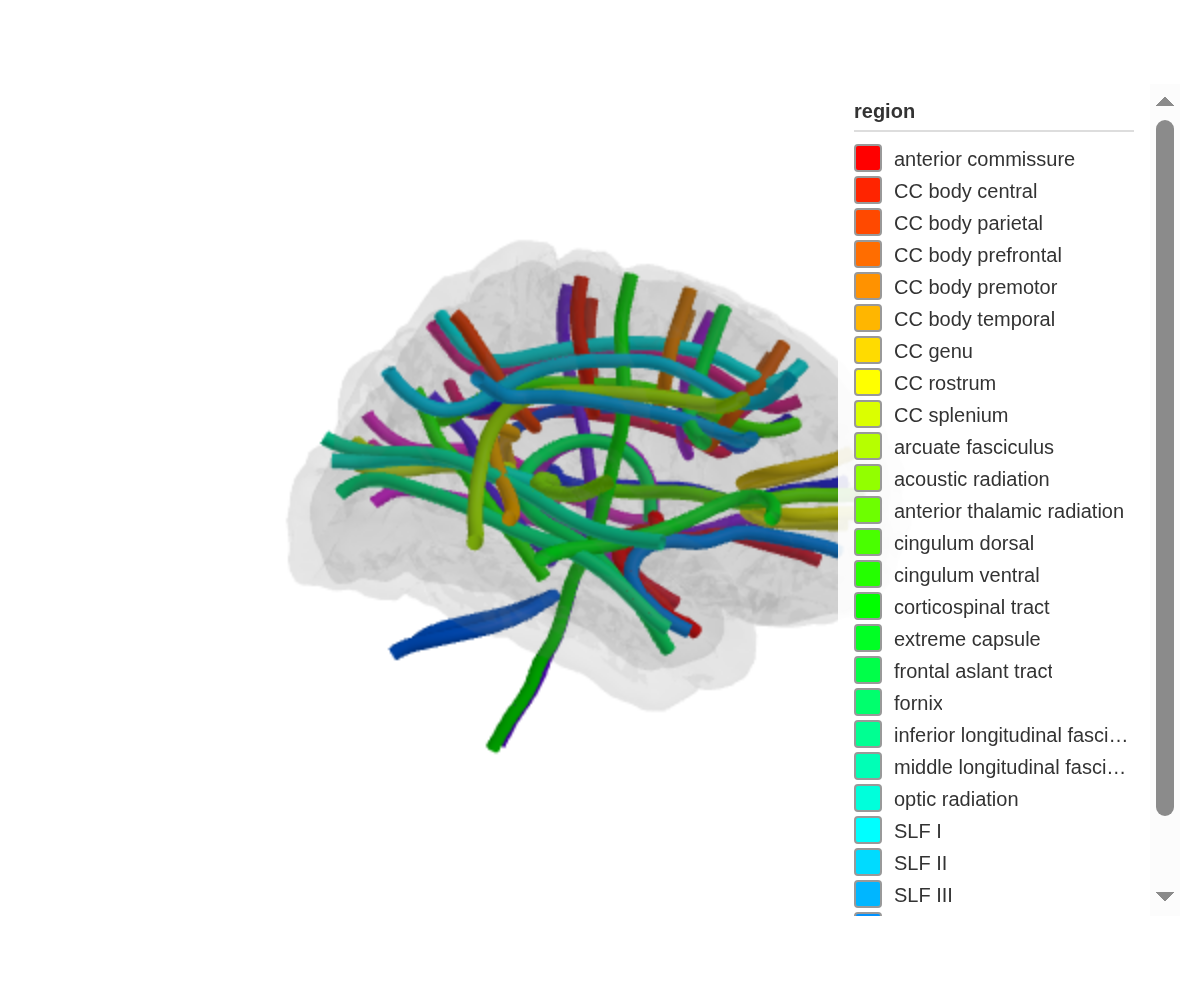

Major white matter tracts rendered as coloured tubes, visible through a faint cortical outline.
Major white matter tracts rendered as coloured tubes, visible through a faint cortical outline.

Mapping data to tracts

Data mapping works the same way as cortical and subcortical atlases — the region column matches tract names:

tract_data <- tibble(
  region = c("arcuate fasciculus", "corticospinal tract",
             "cingulum bundle", "uncinate fasciculus"),
  fa = c(0.45, 0.55, 0.40, 0.35)
)

ggseg3d(
  .data = tract_data,
  atlas = tracula(),
  colour_by = "fa",
  text_by = "fa"
) |>
  add_glassbrain(opacity = 0.1)

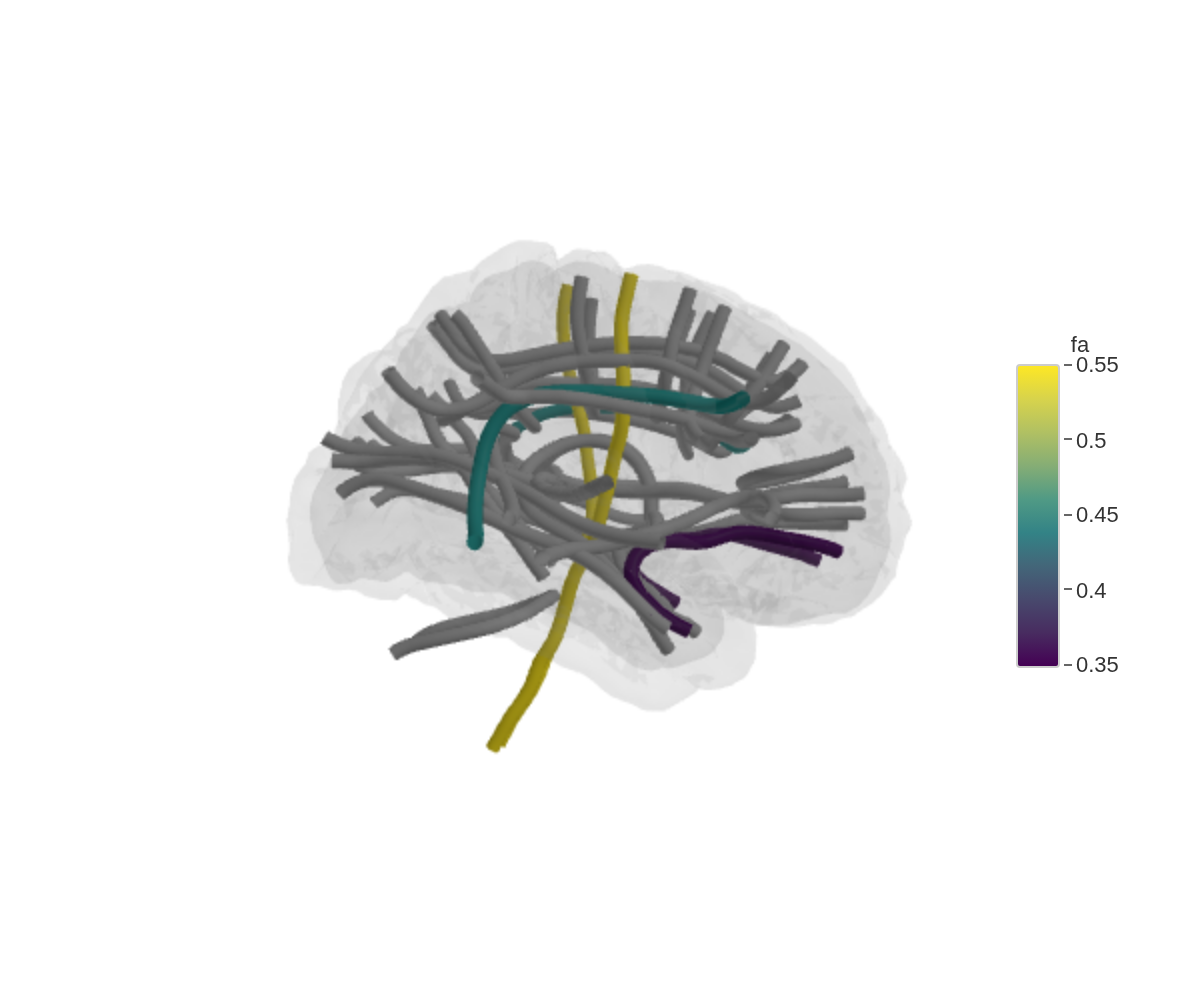

Four white matter tracts coloured on a continuous scale by fractional anisotropy values, with unmatched tracts in grey.
Four white matter tracts coloured on a continuous scale by fractional anisotropy values, with unmatched tracts in grey.

Orientation colouring

tract_color = "orientation" encodes fibre direction as RGB — red for left-right, green for anterior-posterior, blue for superior-inferior. This is the same convention used in DTI colour maps:

ggseg3d(atlas = tracula(), tract_color = "orientation") |>
  add_glassbrain(opacity = 0.1) |>
  set_background("black")

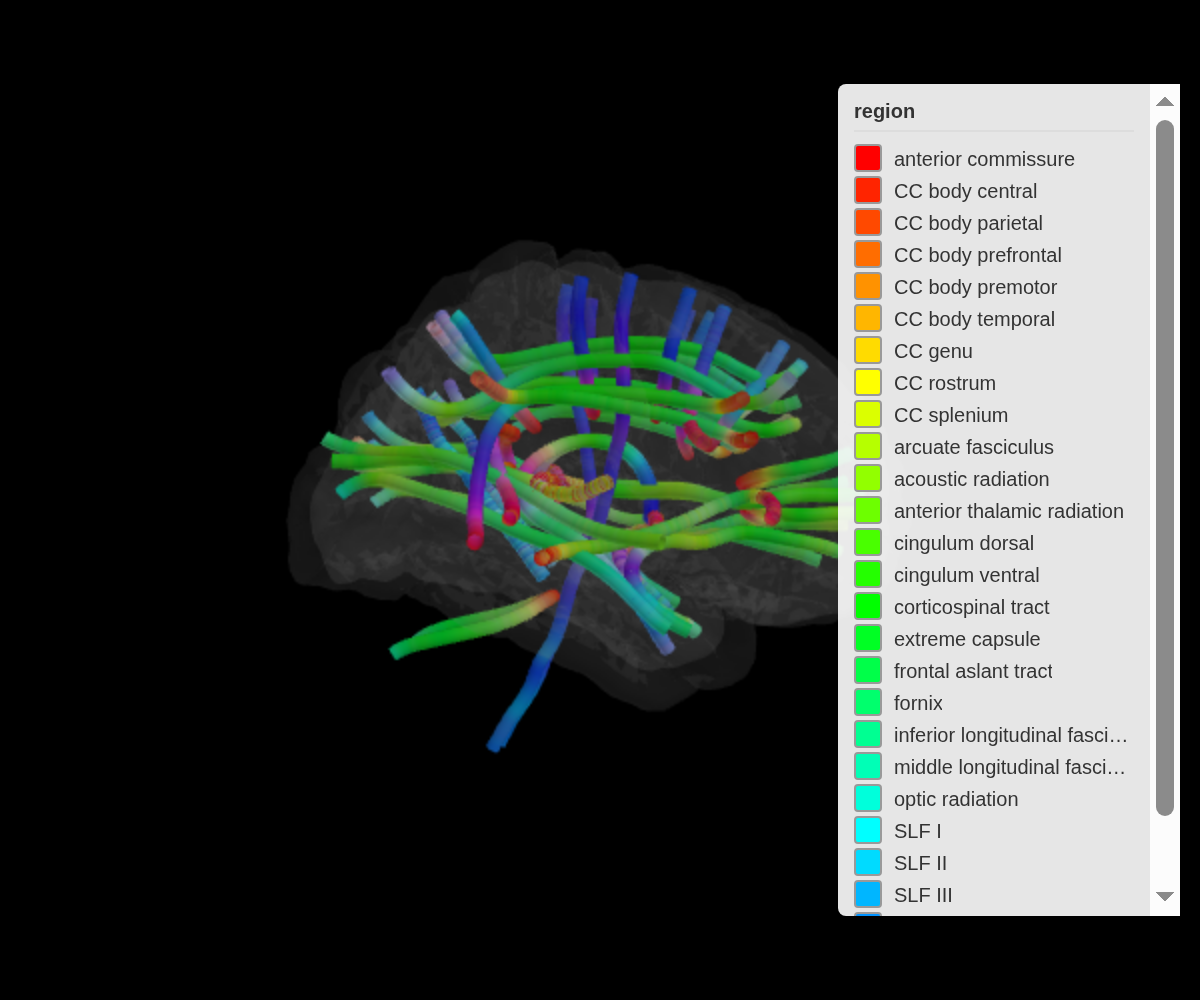

Tracts coloured by fibre orientation — red for left-right, green for anterior-posterior, blue for superior-inferior — against a black background.
Tracts coloured by fibre orientation — red for left-right, green for anterior-posterior, blue for superior-inferior — against a black background.

Tube appearance

tube_radius controls thickness, tube_segments controls smoothness. Higher segments look better but render slower:

ggseg3d(atlas = tracula(), tube_radius = 4, tube_segments = 16) |>
  add_glassbrain(opacity = 0.1)

Saving images

snapshot_brain() renders the widget to a PNG using a headless browser (Chrome or Chromium required):

ggseg3d() |>
  pan_camera("left lateral") |>
  snapshot_brain("brain_lateral.png")

Publication-quality settings

For print, crank up the resolution:

ggseg3d(.data = some_data, atlas = dk(), colour_by = "p") |>
  pan_camera("left lateral") |>
  set_background("white") |>
  snapshot_brain(
    "figure1_brain.png",
    width = 1200,
    height = 1000,
    zoom = 3,
    delay = 2
  )
  • width/height — output dimensions in pixels
  • zoom — resolution multiplier (2-3 for print)
  • delay — seconds to wait for the renderer to finish

Multi-panel figures

Snapshot each view separately, then stitch them together with magick:

library(magick)

base_plot <- ggseg3d(.data = some_data, atlas = dk(), colour_by = "p") |>
  set_background("white")

base_plot |>
  pan_camera("left lateral") |>
  snapshot_brain("left_lat.png")
base_plot |>
  pan_camera("left medial") |>
  snapshot_brain("left_med.png")
base_plot |>
  pan_camera("right lateral") |>
  snapshot_brain("right_lat.png")
base_plot |>
  pan_camera("right medial") |>
  snapshot_brain("right_med.png")

panels <- image_read(c(
  "left_lat.png",
  "left_med.png",
  "right_lat.png",
  "right_med.png"
))
combined <- image_montage(panels, geometry = "600x500", tile = "2x2")
image_write(combined, "figure1_all_views.png")
## agg_png
##       2
## [1] TRUE TRUE TRUE TRUE

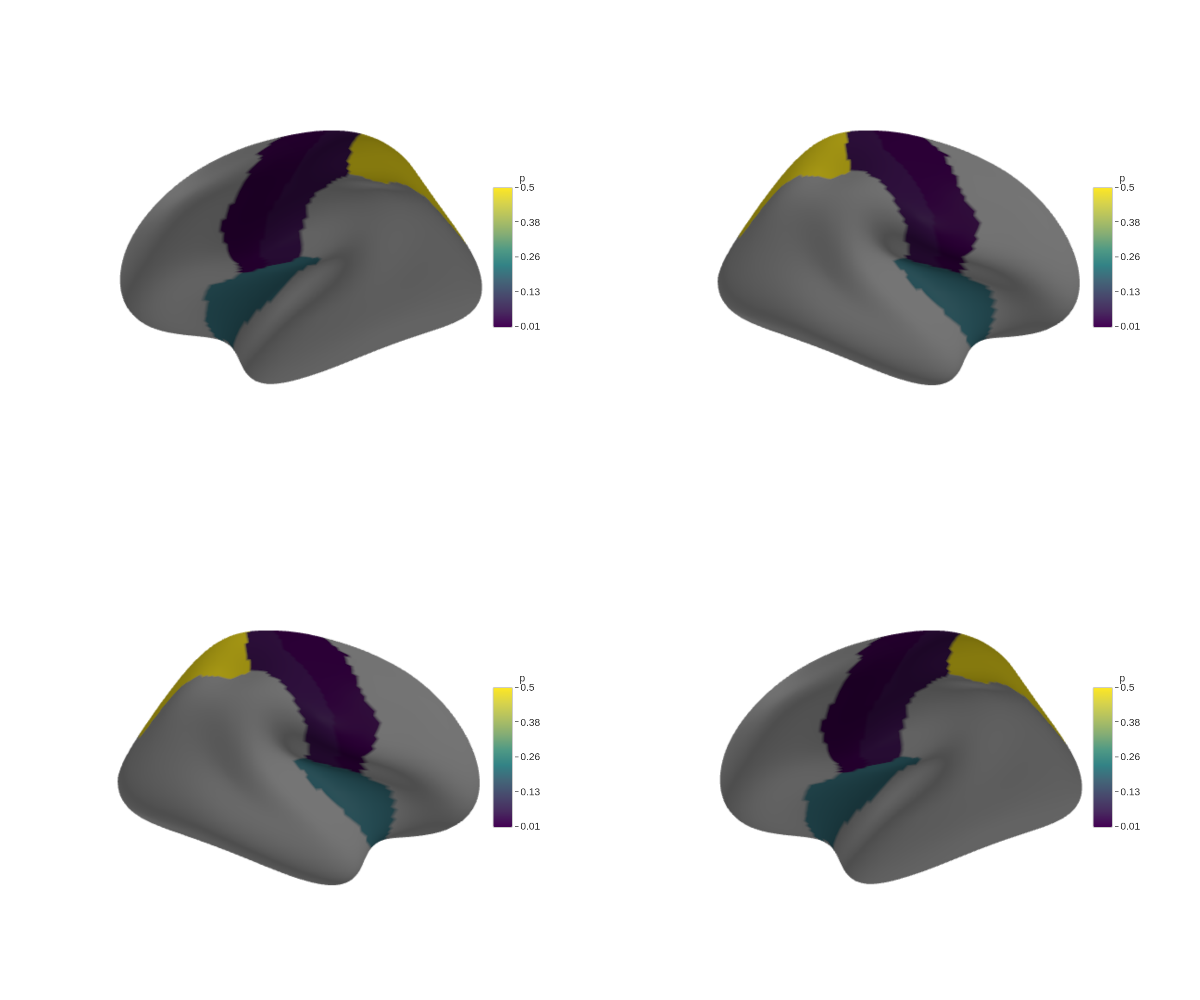

Four views of the same data — left lateral, left medial, right lateral, right medial — stitched into a 2x2 grid.
Four views of the same data — left lateral, left medial, right lateral, right medial — stitched into a 2x2 grid.

Legend control

ggseg3d() |>
  set_legend(FALSE)

Widget dimensions

ggseg3d() |>
  set_dimensions(width = 800, height = 600)

Flat shading

Lighting adds depth but shifts colours. set_flat_shading() turns off all lighting so every vertex renders at its exact assigned colour — useful for atlas illustrations or mask extraction:

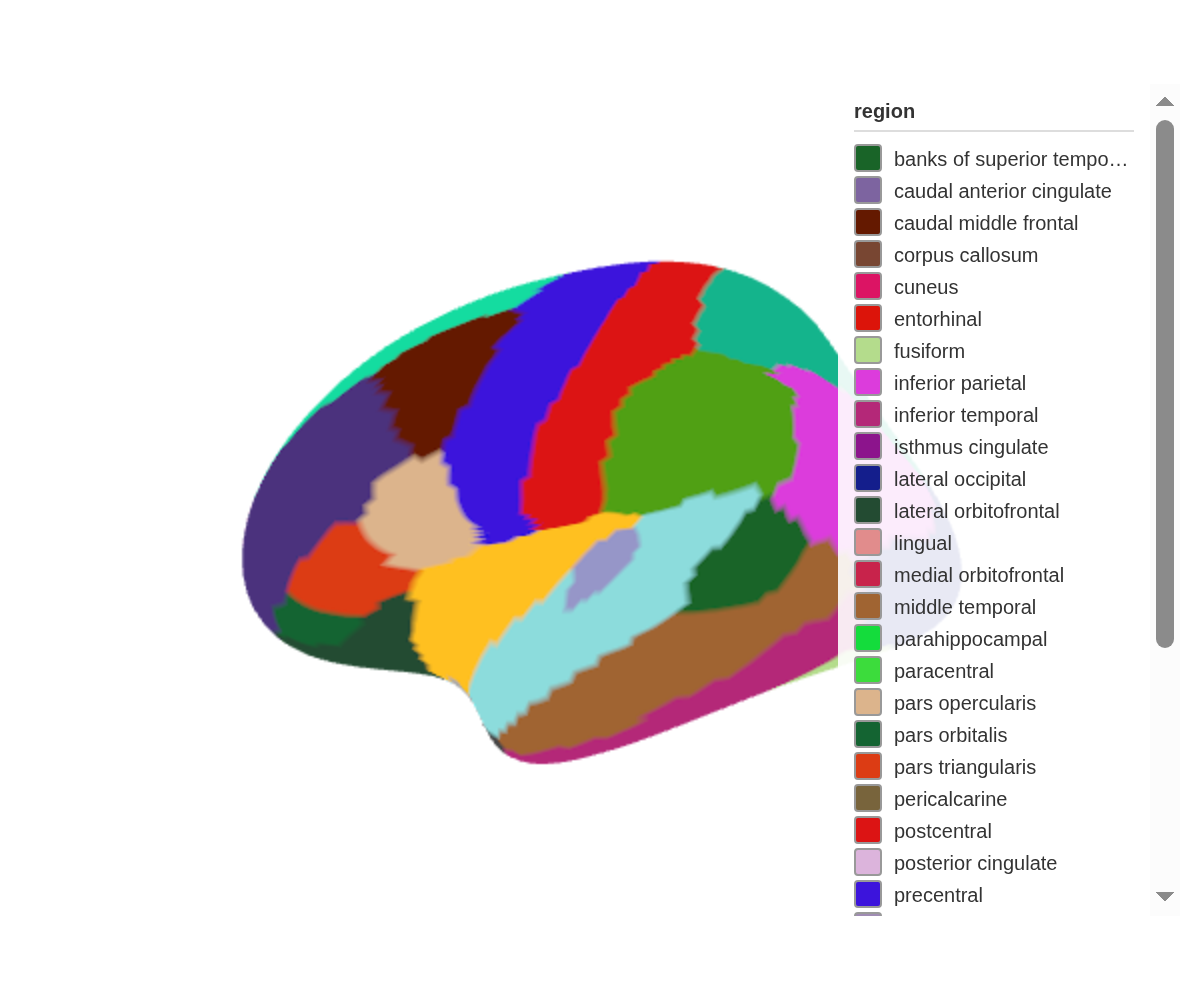

Both hemispheres with flat shading — uniform colour per region, no highlights or shadows, colours exactly matching the atlas palette.
Both hemispheres with flat shading — uniform colour per region, no highlights or shadows, colours exactly matching the atlas palette.

Orthographic projection

Perspective projection makes distant regions look smaller. Orthographic projection removes that depth cue, so every region appears at the same scale regardless of distance from the camera:

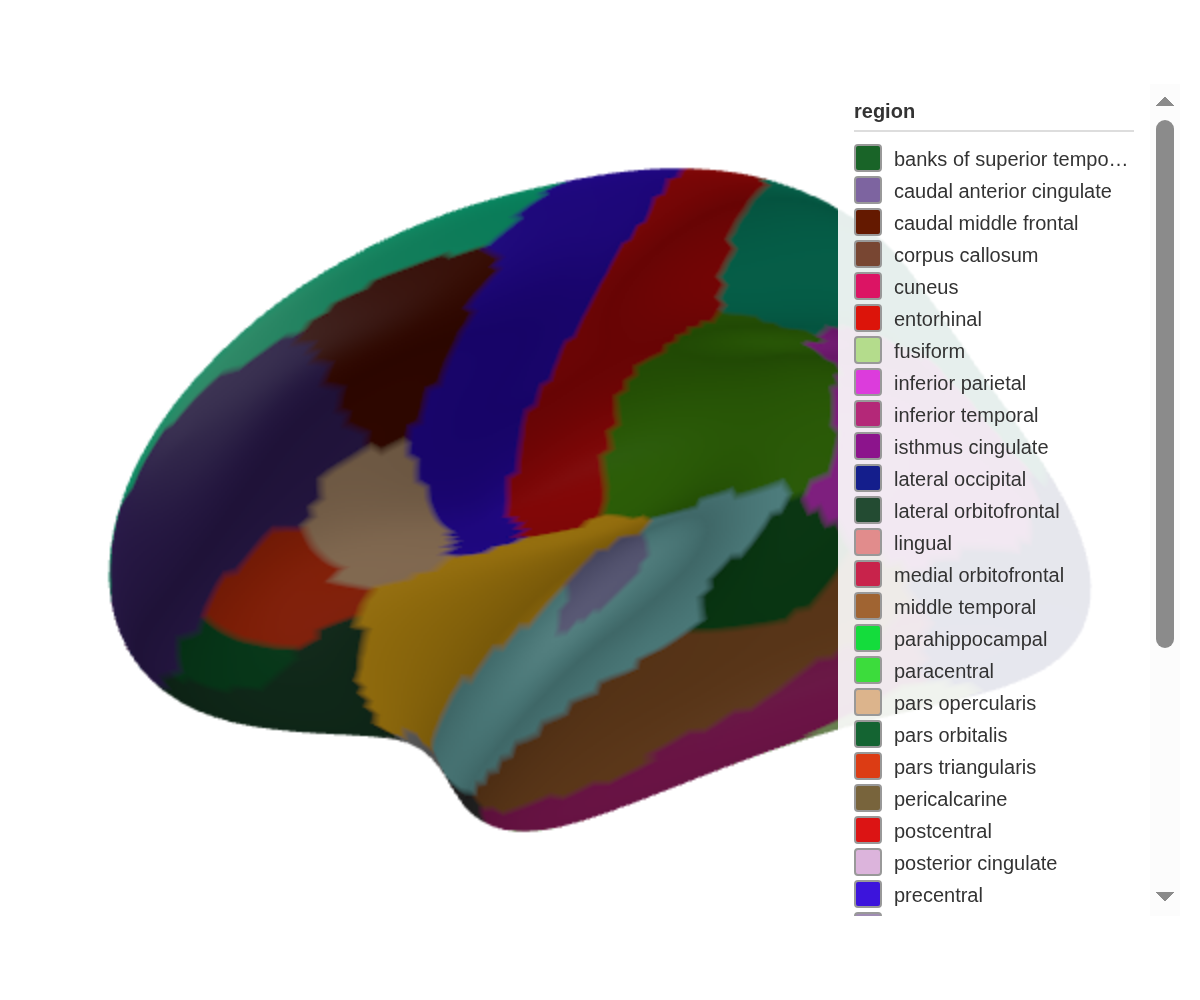

Both hemispheres in orthographic projection — regions appear the same size whether they face the camera or sit behind the brain.
Both hemispheres in orthographic projection — regions appear the same size whether they face the camera or sit behind the brain.

Same atlas for 2D and 3D

ggseg_atlas objects work with both ggseg (2D polygons) and ggseg3d (3D meshes). One atlas, two views:

library(ggseg)

plot(dk())

ggseg3d(atlas = dk())
