Tutorial: Creating a cerebellar atlas • ggseg.extra

The cerebellum sits beneath the cortex and behind the brainstem, folded into tight folia that make it awkward to visualize on a standard brain surface. The SUIT template solves this by providing a dedicated cerebellar surface with a 2D flatmap projection — the same kind of unfolding that cartographers use to flatten a globe.

ggseg.extra ships both SUIT surfaces (flatmap and 3D pial) and provides three creation functions depending on what format your parcellation is in. The result is a ggseg_atlas of type "cerebellar" that works with both ggseg() for 2D flatmap plots and ggseg3d() for interactive 3D views.

What you need

The cerebellar pipeline has lighter dependencies than the cortical or subcortical pipelines. No FreeSurfer installation is required for GIFTI or annotation inputs — the SUIT surfaces are bundled with the package.

For volume-based cerebellar atlases, you need FreeSurfer (for mesh tessellation) and a NIfTI segmentation already in SUIT space.

library(ggseg.extra)
library(ggseg.formats)
library(dplyr)

Three ways in

The pipeline you use depends on the format of your cerebellar parcellation:

GIFTI label files (.label.gii or .func.gii) on the SUIT surface — the most common format for Diedrichsen Lab atlases. Use create_cerebellar_from_gifti().
FreeSurfer annotation files (.annot) painted on the SUIT surface. Use create_cerebellar_from_annotation().
NIfTI volumes containing a voxel-wise segmentation of the cerebellum. Use create_cerebellar_from_volume().

All three produce the same output: a ggseg_atlas with SUIT flatmap polygons for 2D plotting. The volume pathway also generates 3D meshes automatically. For the GIFTI and annotation pathways, pass a matching volume argument if you want 3D meshes too.

Creating from GIFTI labels

SUIT-space GIFTI label files are the standard output from the Diedrichsen Lab cerebellar atlases. Each file maps every vertex on the SUIT surface to a region label.

atlas <- create_cerebellar_from_gifti(
  gifti_files = "Lobules-SUIT.label.gii",
  atlas_name = "suit_lobules"
)

atlas

The pipeline reads the GIFTI label table for region names and colours, maps labels onto the SUIT flatmap vertices, builds per-region sf polygons from the mesh triangles, and applies topology-preserving simplification via rmapshaper to clean up jagged triangle boundaries while keeping shared edges aligned.

If you also have a matching NIfTI volume and want 3D meshes:

atlas <- create_cerebellar_from_gifti(
  gifti_files = "Lobules-SUIT.label.gii",
  volume = "Lobules-SUIT.nii.gz",
  atlas_name = "suit_lobules"
)

Creating from annotation files

Some cerebellar parcellations exist as FreeSurfer .annot files painted on the SUIT surface rather than GIFTI labels. The interface is the same:

atlas <- create_cerebellar_from_annotation(
  input_annot = "cerebellum.annot",
  atlas_name = "cerebellar_annot"
)

This requires the freesurferformats package to read the annotation.

Creating from a volume

When your parcellation is a NIfTI volume — either natively in SUIT space or transformed there — the volume pathway handles both 2D flatmap projection and 3D mesh tessellation in one call:

atlas <- create_cerebellar_from_volume(
  input_volume = "cerebellar_parcellation.nii.gz",
  input_lut = "cerebellar_lut.txt",
  atlas_name = "cerebellar_vol"
)

The input_lut argument accepts a FreeSurfer-style colour lookup table file or a data.frame with columns idx, label, and optionally R, G, B. If omitted, labels are auto-generated from the unique non-zero values in the volume.

Under the hood, the pipeline samples the volume onto the SUIT 3D pial surface, fills any unlabelled vertices using a two-stage neighbour search (voxel neighbours first, then mesh neighbours via majority vote), and projects the result onto the flatmap. The 3D meshes are tessellated from the volume using FreeSurfer tools, so this pathway requires a FreeSurfer installation.

Transforming MNI volumes to SUIT space

Many cerebellar parcellations ship in MNI152 space rather than SUIT space. The package provides helpers to handle the transform before you run the pipeline:

xfm <- suit_deformation_field(template = "MNI152NLin6AsymC")

suit_volume <- transform_mni_to_suit(
  input_volume = "cerebellar_atlas_mni.nii.gz",
  deformation_field = xfm,
  interpolation = "nearest"
)

suit_deformation_field() downloads and caches the nonlinear warp field (~13 MB) from the Diedrichsen Lab. Two MNI templates are supported:

"MNI152NLin6AsymC" — the FSL/FreeSurfer MNI template. Use this for FreeSurfer’s Buckner cerebellar atlases.
"MNI152NLin2009cSymC" — the ICBM 2009c symmetric template.

Use interpolation = "nearest" for label maps (the default) and "linear" for continuous maps like PET receptor densities.

After the transform, pass the SUIT-space volume to create_cerebellar_from_volume() as usual.

Tuning the output

The cerebellar pipeline now returns raw, unsmoothed flatmap polygons. Smoothing is a separate post-processing step via atlas_smooth() — apply it once and tune keep freely without re-running the pipeline:

atlas <- create_cerebellar_from_gifti(
  gifti_files = "Lobules-SUIT.label.gii",
  decimate = 0.3
)

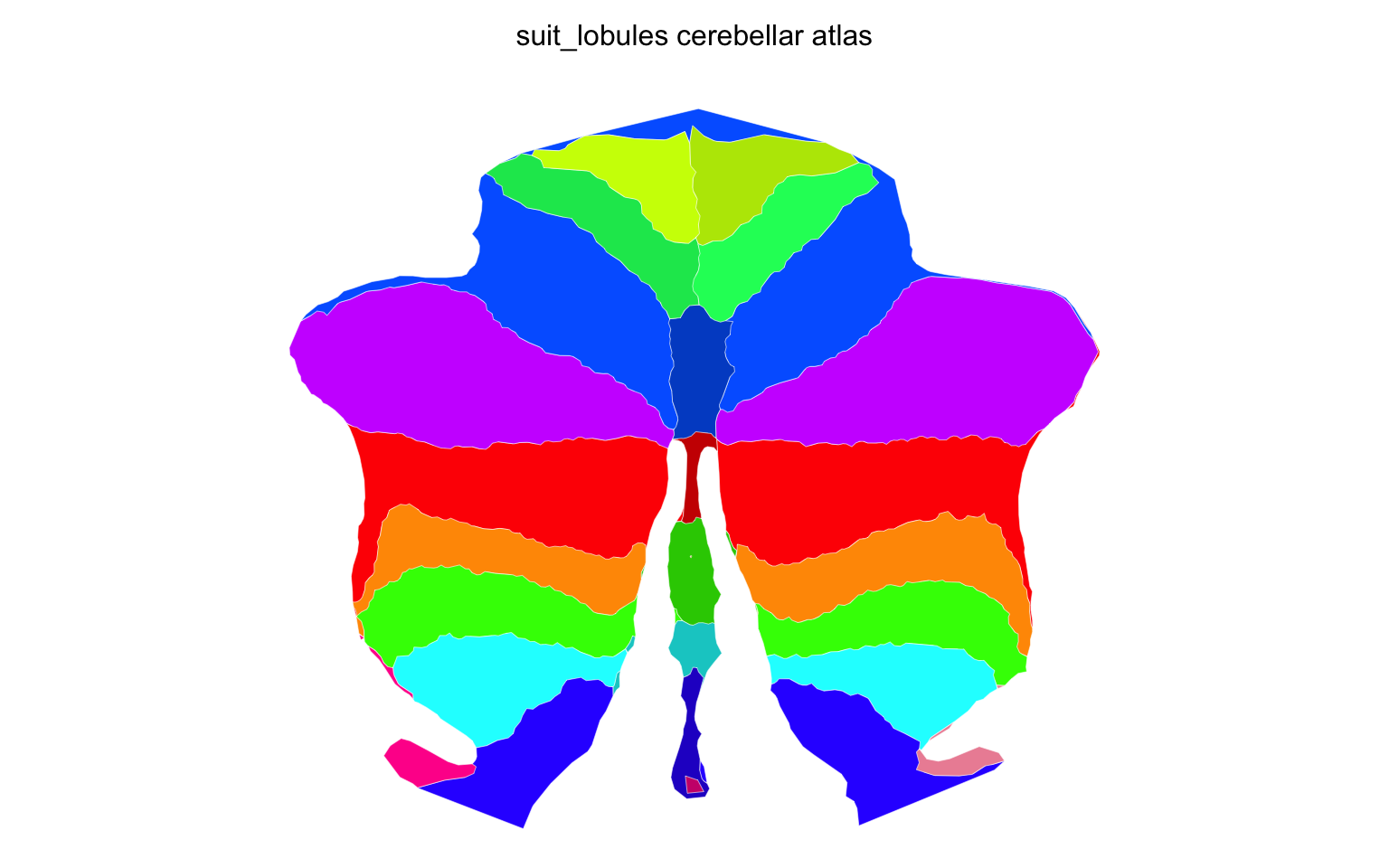

atlas <- atlas |>
  atlas_smooth(keep = 0.2, exclude = "cortex_")

For 3D meshes, decimate controls quadric edge decimation (0–1, default 0.5). A value of 0.5 reduces the mesh to roughly half its original vertex count.

The tolerance, smoothness and smooth_refinements arguments on the create_*() functions are deprecated. Supplying them emits a lifecycle warning and they are otherwise ignored.

Post-processing

The same post-processing tools from the other tutorials work here. Remove unwanted regions, mark context regions, rename labels:

atlas <- atlas |>
  atlas_region_remove("unknown", match_on = "label") |>
  atlas_region_remove("corpuscallosum", match_on = "label")

Cerebellar atlases use hemisphere values "left", "right", and "vermis" — the pipeline detects these from region name prefixes like “Left I-IV”, “Right Crus I”, or “Vermis VI”. The region column has the hemisphere prefix stripped, so you get clean names like “I-IV” and “Crus I”.

Visualization

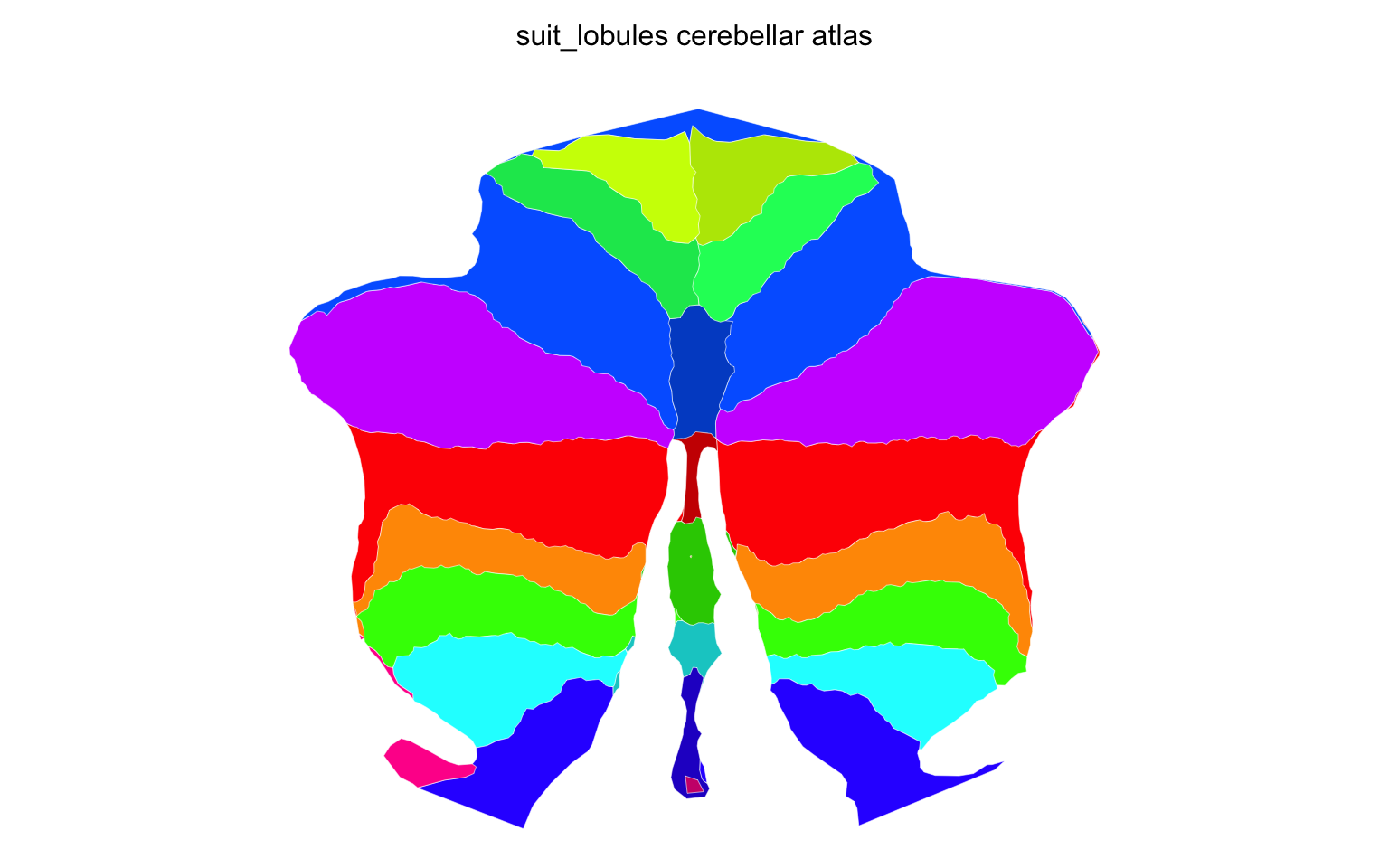

plot(atlas)

The 2D plot shows the SUIT flatmap — the cerebellum unfolded with the vermis in the centre, left hemisphere on the left, right on the right.

If your atlas includes 3D meshes:

ggseg3d::ggseg3d(atlas = atlas)

Saving

Follow the same convention as other atlas packages:

usethis::use_data(atlas, compress = "xz", overwrite = TRUE)

For atlas packages with both 2D and 3D data, see setup_atlas_repo() for the standard scaffolding.

Cerebellar regions in whole-brain atlases

If your parcellation volume contains cerebellar labels alongside cortical and subcortical structures, you don’t need to run the cerebellar pipeline separately. create_wholebrain_from_volume() detects cerebellar labels and routes them through this pipeline automatically — see the whole-brain tutorial for details.
